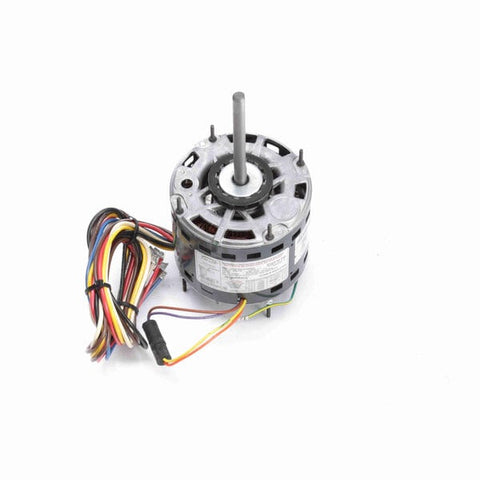

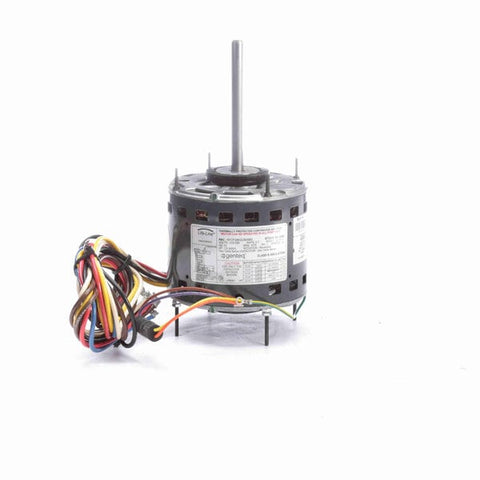

Genteq Direct Drive Motor, 1075 RPM, 1/2 HP, 208-230 V, 48 Frame, Open Air Over
- Life-Line - Direct Drive Fan and Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 38" Leads
- Resilient Ring Mounting, Extended Clampbolts
$261.00 USD
PRODUCT INFO
Applications
Designed for continuous air over applications such as direct drive residential, commercial and industrial air conditioners, fan and blowers
Features
Automatic thermal protection. All-angle mount. Sleeve or ball bearing. 60°C ambient. Reversible rotation. Full flatted shaft. Rheem mounting holes in shell, mounting hardware included. Capacitor requirement noted on motor label
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585020417 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 2.70 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 48 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 4.07 in |
| Shaft Extension | 5.00 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 10.64 in |
| Shaft Diameter | 0.500 in |
