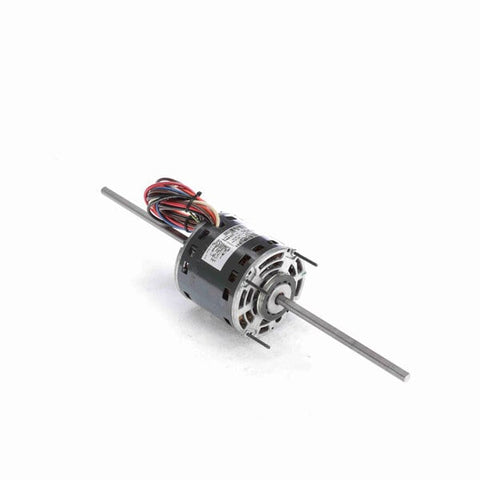

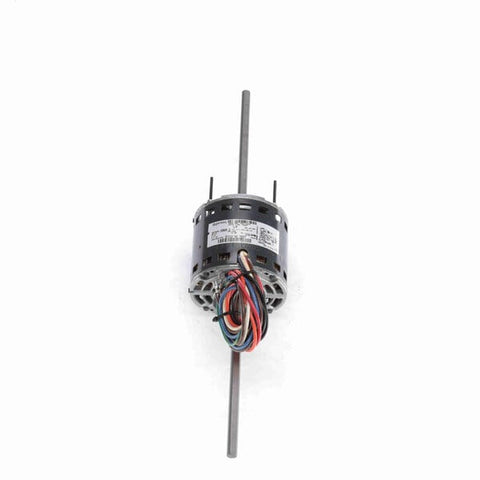

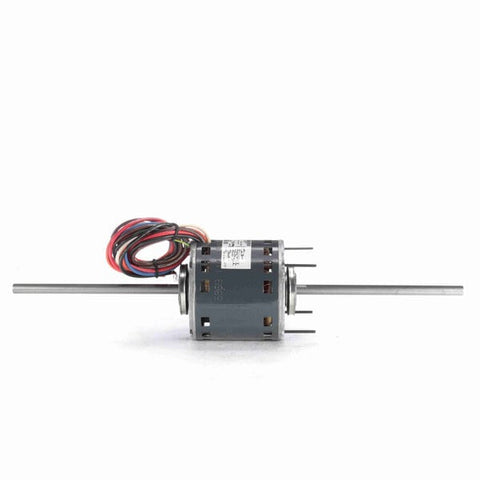

Genteq Direct Drive Motor, 1625 RPM, 1/6 HP, 115 V, 42 Frame, Open Air Over
- Fan Coil - Room Air Conditioner - Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- Dual Extension, 1/2" Diameter Shaft with Flat
- 26" Leads
- Resilient Ring Mounting, Extended Clampbolts
$384.00 USD
PRODUCT INFO
Features
115 Volts, 1625 RPM. Automatic thermal overload protection. Sleeve bearing. Multiple mounting capabilities. CCW rotation facing lead end
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585023388 |
| Output HP | 1/6 Hp |
| Frequency | 60 Hz |
| Current | 2.10 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1625 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 4 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.91 in |
| Shaft Extension | 8.00 in |
| Rotation | Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 21.75 in |
| Shaft Diameter | 0.500 in |
