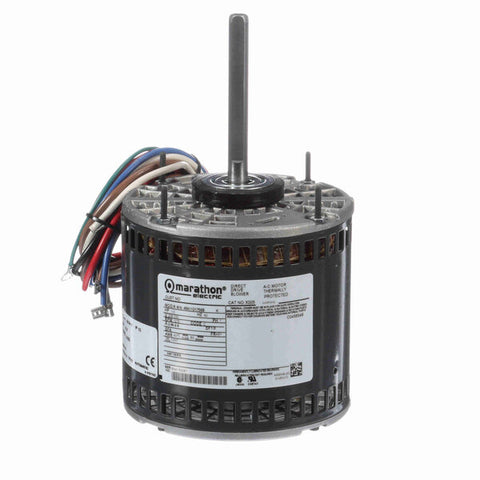

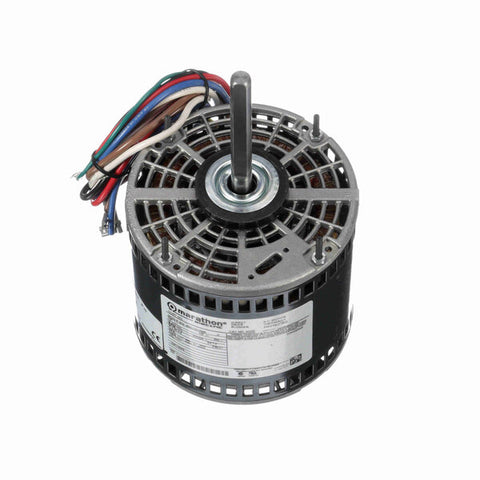

Marathon Direct Drive Motor, 1075 RPM, 1/2 HP, 208-230 V, 48Y Frame, Open Air Over
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Flex Mount
- HM106-0040 replaces the following brands and item numbers: Designed as replacements for direct drive furnace blower motors, air conditioners, exhaust fans and other applications
$163.00 USD
PRODUCT INFO
Applications
Designed as replacements for direct drive furnace blower motors, air conditioners, exhaust fans and other applications
Features
Automatic thermal protection. Reversible rotation |Horizontal mount. 2-1/4" resilient rings. 26" long leads with 1/4" straight terminals. 1/2" x 4" long flatted shaft with flat 3-1/2" long. 3/4" long studs on 5.12" bolt circle, #10-32 thread on shaft end
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856038579 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 2.7-2.6 A |
| Service Factor | 1 |
| Duty | Continous |
| Frame | 48Y |
| Thermal Protection | Automatic Lock Rotor Only |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Ring - Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Single Special Extension |
| Frame Length | 4.75 in |
| Shaft Extension | 4.06 in |
| Rotation | Selective Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 10.25 in |
| Shaft Diameter | 0.500 in |
