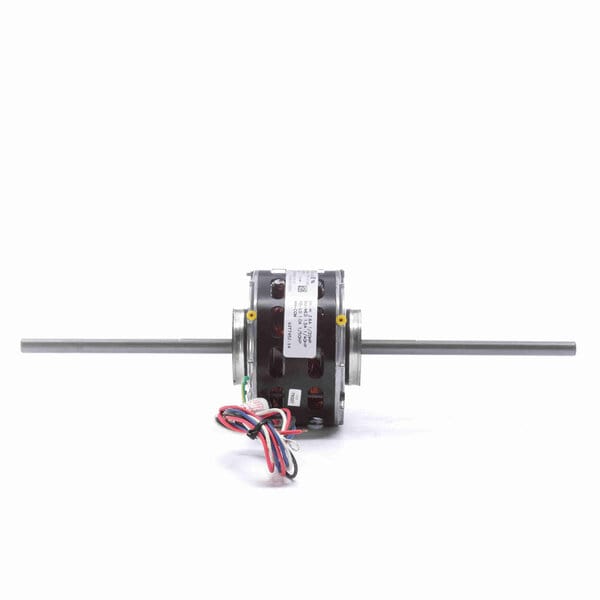

Century Coil / Room Air Conditioner Motor, 1050 RPM, 1/20-1/40-1/50 HP, 115 V, 42 Frame, Open Air Over
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 33" Leads
- Resilient Ring Mounting
$164.00 USD
PRODUCT INFO
Applications
Used in motels, hotels, offices and hospitals where a central system pumps hot or cold water or refrigerants to remote console type units |Highly versatile, easily modified to replace the original equipment motor, and will closely match the original's performance
Features
Thermally protected. Shaft: same length on both ends, height is 3-1/2"
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674007650 |
| Output HP | 1/20, 1/40, 1/50 Hp |
| Frequency | 60 Hz |
| Current | 2.6 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 2.42 in |
| Shaft Extension | 7 5/16 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 17.63 in |
| Shaft Diameter | 0.500 in |
