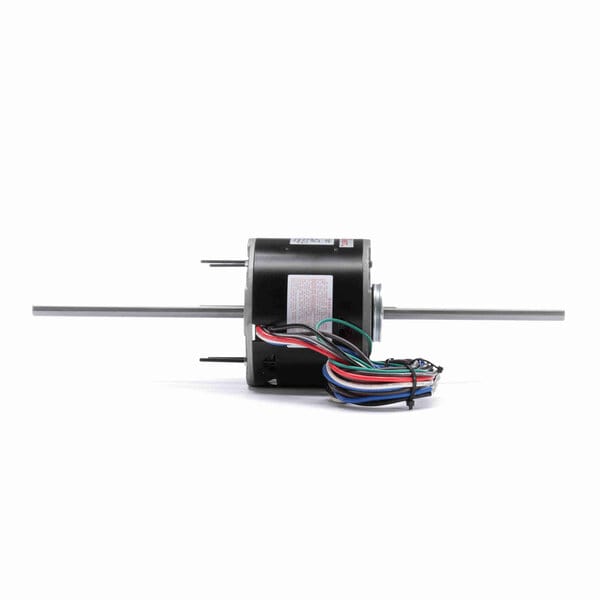

Century Coil / Room Air Conditioner Motor, 1075 RPM, 1/3 HP, 208-230 V, 48 Frame, Semi Enclosed
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed, Air Over
- Class B Insulation, 60°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 35" Leads
- Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor
$232.05 USD
PRODUCT INFO
Applications
Can be used in a variety of commercial and residential air conditioners, furnaces, air handlers, unit heaters and similar air over applications
Features
Quiet sleeve bearings in heavy diecast end bell. 3-speed |Automatic reset thermal overload protector. Long double shafts, extended thru-bolts. Packed with a heavy-duty length adapter kit which includes a ring bracket. 2-1/4" resilient rings, split rings for conversion to 2-1/2" and necessary hardware|Provision for mounting capacitors (capacitors and strap not included)
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674030160 |
| Output HP | 1/3 Hp |
| Frequency | 60 Hz |
| Current | 1.9 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Ring/Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 4.00 in |
| Shaft Extension | 8.2 X.5 X7.2 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 19.99 in |
| Shaft Diameter | 0.500 in |
