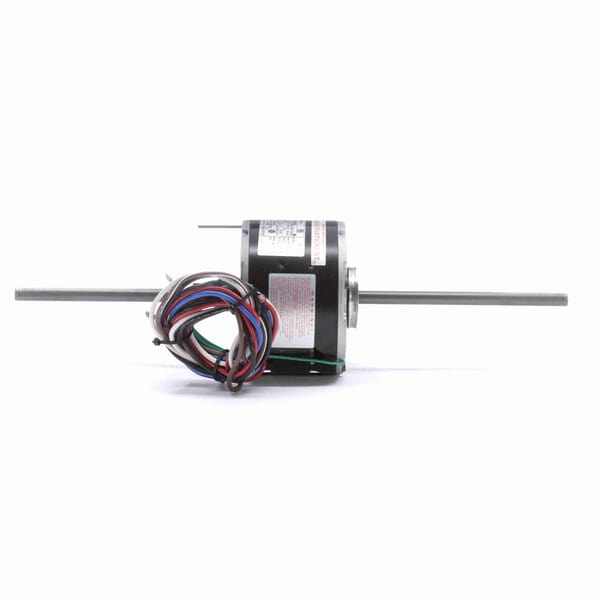

Century Coil / Room Air Conditioner Motor, 1075 RPM, 1/6 HP, 208-230 V, 48 Frame, Semi Enclosed

Availability:
Out-Stock
  • Fan Coil - Room Air Conditioner - Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 35" Leads
  • Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor

$227.85 USD

Sold Out

SKU:
RA1016
ID:
HM105-1S9-0011

PRODUCT INFO

Applications
Can be used in a variety of commercial and residential air conditioners, furnaces, air handlers, unit heaters and similar air over applications

Features
Quiet sleeve bearings in heavy diecast end bell. 3-speed |Automatic reset thermal overload protector. Long double shafts, extended thru-bolts. Packed with a heavy-duty length adapter kit which includes a ring bracket. 2-1/4" resilient rings, split rings for conversion to 2-1/2" and necessary hardware. Provision for mounting capacitors (capacitors and strap not included)

SPECIFICATIONS

Nameplate Specifications
UPC786674030122
Output HP1/6 Hp
Frequency60 Hz
Current0.96 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassA
EnclosureSemi Enclosed
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Ring/Extended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length3.13 in
Shaft Extension8.3X.5X8.0 in
RotationCounterclockwise Lead End
Frame MaterialRolled Steel
Overall Length20.00 in
Shaft Diameter0.500 in
