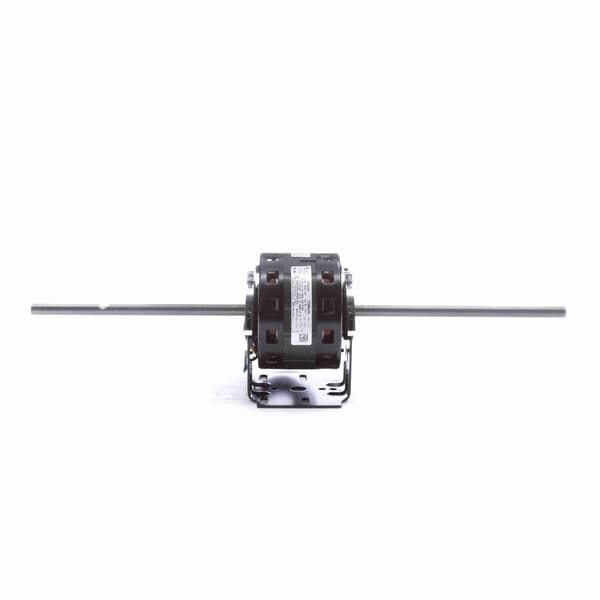

Century Window+Room Air Conditioniq, 1050 RPM, 1/10-1/15-1/20-1/25 HP, 277 V, 42 Frame, Open Air Over

Availability:
Out-Stock
  • Fan Coil - Dual Wheel Blower Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 40" Leads with Quick Connect Terminals
  • Resilient Base

$242.55 USD

Sold Out

SKU:
7DB6408
ID:
HM105-1S9-0021

PRODUCT INFO

Applications
277V direct drive blower wheel heating/air conditioning consoles, fan coil units, through-the-wall air conditioners, rooftop equipment

Features
Generous double shaft extensions which may be cut off to desired length or changed to a single shaft motor with desired rotation. 3- or 4-speed. Adaptable to most application requirements where the motor is located in the airstream. Automatic reset thermal protection. Shaft: same length both extensions

SPECIFICATIONS

Nameplate Specifications
UPC786674010858
Output HP1/10,1/15,1/20,1/25 Hp
Frequency60 Hz
Current1.3, 0.8, 0.7, 0.6 A
Service Factor1
DutyAir Over
Frame42Y
Thermal ProtectionAutomatic
ULRecognized
Voltage277 V
Speed1050 rpm
Phase1
Insulation ClassA
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles6
MountingResilient Rings
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension9.3X.5X9.3 in
RotationCounterclockwise Lead End
Frame MaterialRolled Steel
Overall Length22.00 in
Shaft Diameter0.500 in
