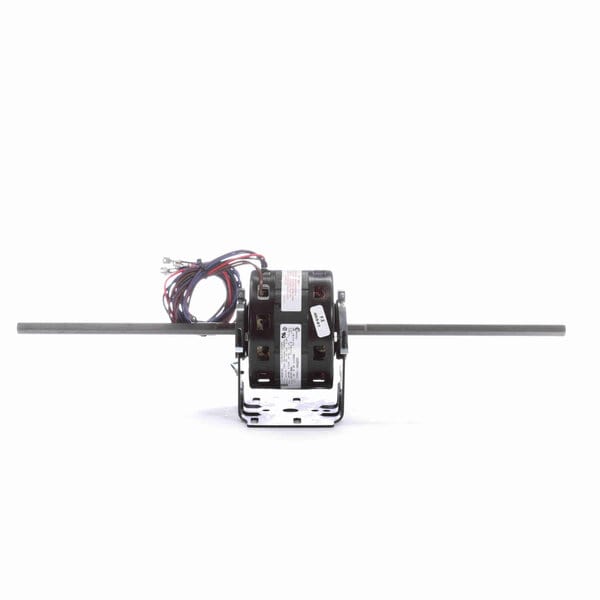

Century Window+Room Air Conditioniq, 1075 RPM, 1/8-1/10-1/12 HP, 208-230 V, 42 Frame, Open Air Over

Availability:
Out-Stock
  • Fan Coil - Dual Wheel Blower Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 40" Leads with Quick Connect Terminals
  • Resilient Base

$372.75 USD

Sold Out

SKU:
7DB6503
ID:
HM105-1S9-0024

PRODUCT INFO

Applications
277V direct drive blower wheel heating/air conditioning consoles, fan coil units, through-the-wall air conditioners, rooftop equipment

Features
Generous double shaft extensions which may be cut off to desired length or changed to a single shaft motor with desired rotation. 3- or 4-speed. Adaptable to most application requirements where the motor is located in the airstream. Automatic reset thermal protection. Shaft: same length both extensions

SPECIFICATIONS

Nameplate Specifications
UPC786674010865
Output HP1/8,1/10,1/12 Hp
Frequency60 Hz
Current0.8, 0.7, 0.5 A
Service Factor1
DutyAir Over
Frame42Y
Thermal ProtectionAutomatic
ULRecognized
Voltage277 V
Speed1075 rpm
Phase1
Insulation ClassA
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Base
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension9.3 X.5 X9.3 in
RotationCounterclockwise Lead End
Frame MaterialNa
Overall Length22.00 in
Shaft Diameter0.500 in
