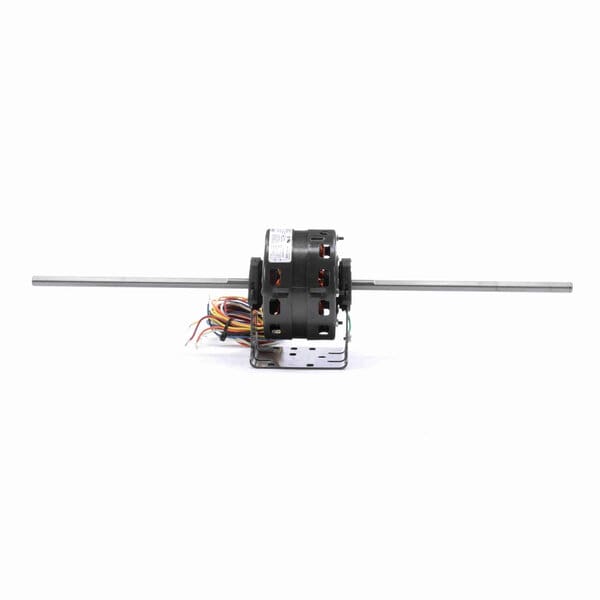

Fasco Coil / Room Air Conditioner Motor, 1050 RPM, 1/10-1/30-1/40-1/45-1/50 HP, 115 V, 42 Frame, Open Air Over
- Fan Coil - Air-Conditioning - Heating Unit Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 53" Leads with .5" Strip
- Resilient Base
$174.00 USD
PRODUCT INFO
Applications
Used in motels, hotels, offices and hospitals where a central system pumps hot or cold water or refrigerants to remote console type units |Highly versatile, easily modified to replace the original equipment motor, and will closely match the original's performance
Features
Thermally protected. Shaft: same length on both ends, height is 3-1/2"
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585029403 |
| Output HP | 1/10-1/30-1/40-1/45-1/50 Hp |
| Frequency | 60 Hz |
| Current | 3.6/1.6/1.2/0.8/0.6 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42 |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 10.75 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Na |
| Overall Length | 24.66 in |
| Shaft Diameter | 0.500 in |
