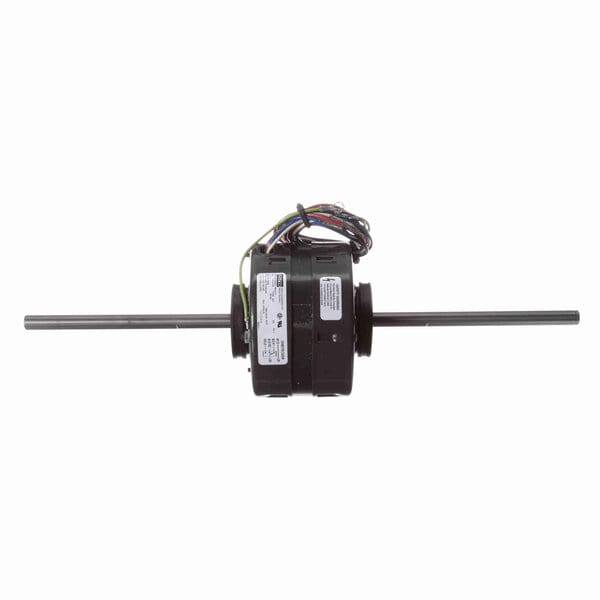

Fasco Window+Room Air Conditioniq, 1050 RPM, 1/25-1/50-1/80 HP, 115 V, 42 Frame, Open Air Over

Availability:
Out-Stock
  • Fan Coil - Air-Conditioning - Heating Unit Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 35" Leads with PIN Terminal
  • Resilient Mounting Ring Lead End and Opposite Lead End

$265.00 USD

Sold Out

SKU:
D255
ID:
HM105-1S9-0033

PRODUCT INFO

Applications
Used in motels, hotels, offices and hospitals where a central system pumps hot or cold water or refrigerants to remote console type units |Highly versatile, easily modified to replace the original equipment motor, and will closely match the original's performance

Features
Thermally protected. Shaft: same length on both ends, height is 3-1/2"

SPECIFICATIONS

Nameplate Specifications
UPC815585029311
Output HP1/25-1/50-1/80 Hp
Frequency60 Hz
Current1.5/1.0/0.6 A
Service Factor1
DutyAir Over
Frame42
Thermal ProtectionThermally Protected
ULRecognized
Voltage115 V
Speed1050 rpm
Phase1
Insulation ClassA
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles6
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension7.50 in
RotationCounterclockwise Lead End
Frame MaterialNa
Overall Length18.26 in
Shaft Diameter0.500 in
