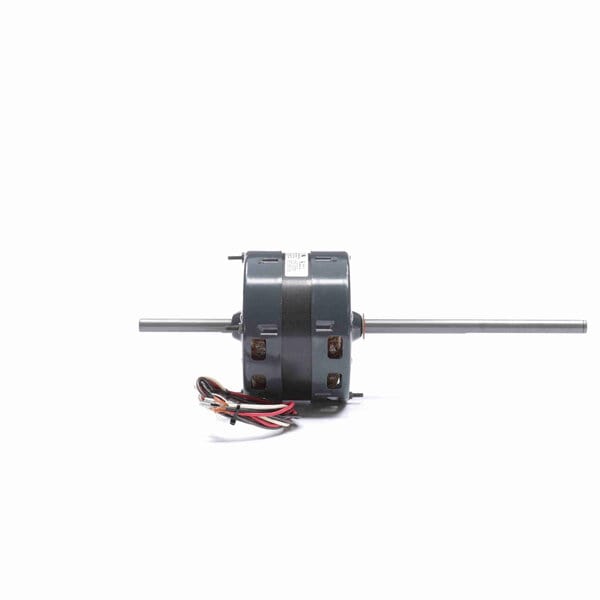

Fasco Window+Room Air Conditioniq, 1675/1080 RPM, 1/3 HP, 115 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 23" Leads
- (4) Extended Studs Lead End, (1) Extended Stud Opposite Lead End
$237.00 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 815585028116 |
| Output HP | 1/3 Hp |
| Frequency | 60 Hz |
| Current | 3.4 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1675/1080 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 7.92 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Na |
| Overall Length | 15.02 in |
| Shaft Diameter | 0.500 in |
