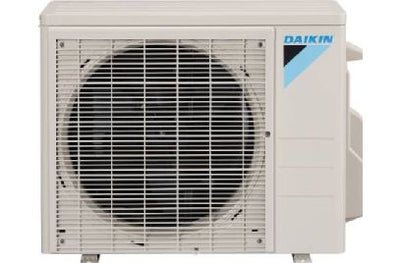

Daikin 24,000 BTU 18.0 SEER Air Conditioner Condenser; Single Zone


This product requires compatible indoor unit for functionality.
SEER: 18.0; SEER Non-Ducted: 18; EER Non-Ducted: 12.5; BtuH Cooling: 22,000; Min. Cooling Capacity BtuH: 5,500; Max. Cooling Capacity BtuH: 24,000; CFM High: 2,101; Volts: 208/230; Amps Cooling: 7.98; Max. Fuse Size: 20; Cooling Temperature Range Deg.F: 50 - 115; Sound Pressure Cooling dBA: 55; Liquid Conn.: 1/4"; Suction Fitting: 5/8"; Min. Total Pipe Length: 5; Max. Total Pipe Length: 98; Width: 34-1/4"; Height: 28-15/16"; Depth: 12-5/8"; Wt. Lbs.: 108;


For pricing and to purchase this product:

Please register, login, or contact us for a quote request


  This product requires compatible indoor unit for functionality.

  • Auto restart after a power failure
  • Self Diagnostics with Digital Display
  • Auto fan speed control
  • Quiet Operation
  • Powerful Operation Mode
  • Program Dry Function
  • Econo Mode
  • Washable air filter
  • Outdoor Sound Pressures as Low as 46 dB(A)
  • Inverter Compressor
  • Our SKU number(s): Daikin RK24NMVJU
  • The manufacturer model number(s): Daikin RK24NMVJU

  This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.


General Information
TypeOutdoor Condenser
Product Line19 Series
Operating ModeCooling Only
Number of Zones1
Refrigerant TypeR-410A
Multi-Zone CompatibleNo
Installation LocationOutdoor

Cooling BTU 24000
Maximum Sound Level 55 dB
Low Ambient HeatingYes
Minimum Outdoor Temperature for Cooling-4 F

Maximum Line Length98.4 Feet
Gas Connection Size5/8 Inch
Liquid Connection Size1/4 Inch
Product Height28 15/16 Inches
Product Width34 1/4 Inches
Product Depth12 5/8 Inches
Product Weight118 Pounds

AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
Country of OriginChina
