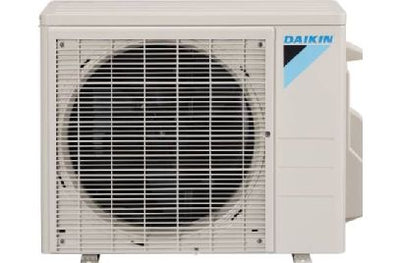

Daikin 9,000 BTU 19.0 SEER Air Conditioner Condenser; Single Zone


This product requires compatible indoor unit for functionality.
SEER: 19.0; SEER Non-Ducted: 19; EER Non-Ducted: 12.5; BtuH Cooling: 9,000; Min. Cooling Capacity BtuH: 4,400; Max. Cooling Capacity BtuH: 10,200; CFM High: 1,102; Volts: 208/230; Amps Cooling: 3.52; Max. Fuse Size: 15; Cooling Temperature Range Deg.F: 50 - 115; Sound Pressure Cooling dBA: 46; Liquid Conn.: 1/4"; Suction Fitting: 3/8"; Min. Total Pipe Length: 5; Max. Total Pipe Length: 65; Width: 26-9/16"; Height: 21-5/8"; Depth: 11-3/16"; Wt. Lbs.: 55;


For pricing and to purchase this product:

Please register, login, or contact us for a quote request


  This product requires compatible indoor unit for functionality.

  • Inverter variable speed compressor
  • Automatic operation for year-round comfort
  • Vertical auto swing air movement
  • Humidity control
  • Auto fan speed
  • 24-hour on/off timer
  • Auto restart after power failure
  • Self diagnosis with digital display
  • 208/230V


General Information
TypeOutdoor Condenser
Product Line19 Series
Operating ModeCooling Only
Number of Zones1
Refrigerant TypeR-410A
Multi-Zone CompatibleNo
Installation LocationOutdoor

Cooling BTU 9000
Maximum Sound Level 46 dB
Low Ambient HeatingNo
Minimum Outdoor Temperature for Cooling-4 F

Maximum Line Length65.6 Feet
Gas Connection Size3/8 Inch
Liquid Connection Size1/4 Inch
Product Height21 5/8 Inches
Product Width26 9/16 Inches
Product Depth11 1/8 Inches
Product Weight55 Pounds

AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
Country of OriginChina
