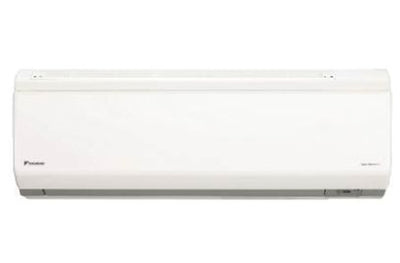

Daikin FTK24NMVJU 24,000 BTU Wall-Mounted Indoor Unit
Daikin FTK24NMVJU 24,000 BTU wall-mounted indoor unit is an indoor ductless component for a matched Daikin single-zone cooling-only system.
Product highlights
- 24,000 BTU nominal capacity class
- Wall-mounted indoor unit
- Single-zone ductless cooling application
- Daikin model FTK24NMVJU
Ordering details
- Brand: Daikin
- Model / SKU: FTK24NMVJU
- Product type: Indoor Air Handler
Compatibility note: This is an indoor component, not a complete system. Confirm the matched outdoor unit, controls, piping, voltage, and installation requirements before ordering.
$479.00 USD
SKU:
FTK24NMVJU
ID:
HE103-2070
PRODUCT INFO
- Inverter variable speed compressor
- Automatic operation for year around comfort
- Vertical auto swing air movement
- Humidity control
- Auto fan speed
- Remote controller with back-lit display
- 24 hour on / off timer
- Auto restart after power failure
- Self diagnosis with digital display
- 208/230V
This product requires a compatible Daikin outdoor condenser and the following accessories for installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
SPECIFICATIONS
| General Information | |
| Type | Wall Mounted |
| Product Line | 19-Series |
| Operating Mode | Cooling Only |
| Multi-Zone Compatible | No |
| Refrigerant Type | R-410A |
| Remote Control | Wireless |
| Indoor Unit Size(s) | 24 |
| Installation Location | Indoor |
| Performance | |
| Cooling BTU | 24000 |
| Cooling Capacity | 24000 BTU |
| Moisture Removal | 9.6 Pints/Hour |
| Maximum Air Flow | 745 CFM |
| Minimum Air Flow | 403 CFM |
| Maximum Sound Level | 34 dB |
| Maximum Sound Level | 53 dB |
| Dimensions | |
| Gas Connection Size | 5/8 Inch |
| Liquid Connection Size | 1/4 Inch |
| Condensate Drain Size | 5/8 Inch |
| Product Height | 11 5/8 Inches |
| Product Width | 39 Inches |
| Product Depth | 10 1/3 Inches |
| Product Weight | 26 Pounds |
| Certifications | |
| AHRI Certified | Yes |
| ETL Listed | Yes |
| ISO Certified | Yes |
