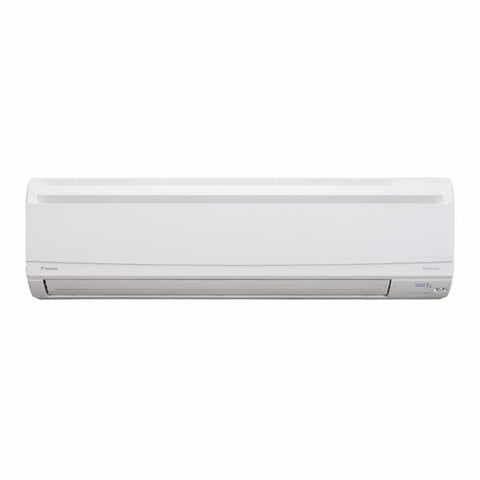

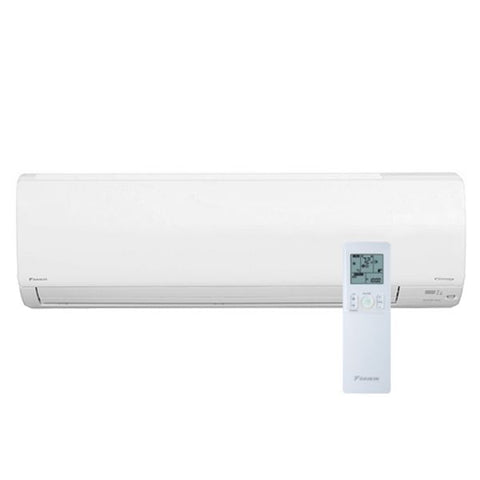

Daikin 9,000 BTU Wall Mounted Air Handler; Single Zone (Heat Pump)


This product requires a compatible outdoor condenser for functionality.
Style: Wall Mounted; BtuH Cooling: 8,800; BtuH Heating: 9,400; Volts: 208/230; Sound Pressure Cooling dBA: 42; Sound Pressure Heating dBA: 42; Liquid Conn.: 1/4"; Suction Fitting: 3/8"; Width: 35-1/16"; Height: 11-11/16"; Depth: 8-1/4"; Wt. Lbs.: 20; Wifi Enabled: N; Nom. Capacity: 9000;


For pricing and to purchase this product:

Please register, login, or contact us for a quote request


  • Inverter variable speed compressor
  • Automatic operation for year round comfort
  • Vertical auto swing air movement
  • Humidity control
  • Auto fan speed

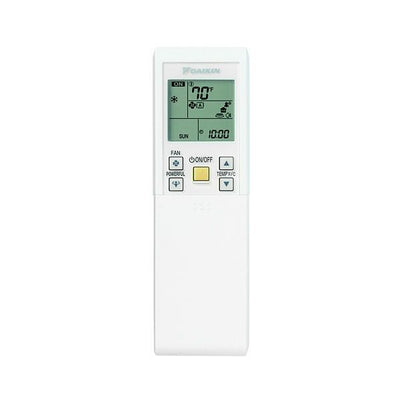

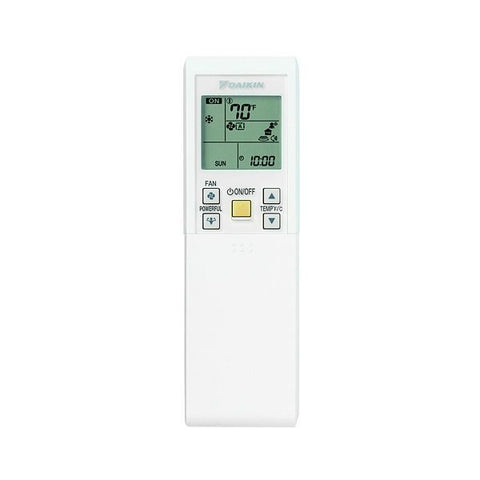

  • Remote controller with backlit display
  • 24 hour on / off timer
  • Auto restart after power failure
  • Self diagnosis with digital display
  • 208/230V

  This product requires a compatible Daikin outdoor condenser and the following accessories for installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.


General Information
TypeWall Mounted
Product Line17-Series
Operating ModeHeating and Cooling
Multi-Zone CompatibleNo
Refrigerant TypeR-410A
Remote ControlWireless
Indoor Unit Size(s) 9
Installation LocationIndoor


Cooling BTU 9000
Cooling Capacity9000 BTU
Maximum Air Flow330 CFM
Minimum Air Flow215 CFM
Minimum Sound Level30 dB
Maximum Sound Level 42 dB

Gas Connection Size3/8 Inch
Liquid Connection Size1/4 Inch
Condensate Drain Size3/4 Inch
Product Height11 11/16 Inches
Product Width35 1/16 Inches
Product Depth8 1/4 Inches
Product Weight20 Pounds


AHRI CertifiedYes
