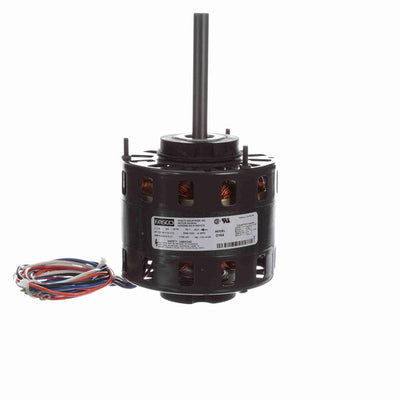

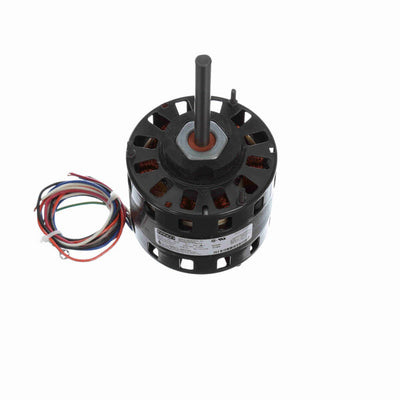

Fasco Direct Drive Motor, 1050 RPM, 1/6-1/8-1/10-1/2 HP, 115 V, 42 Frame, Open Air Over

Availability:
Out-Stock
  • Direct Drive Blower Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 26.5" Leads
  • Resilient Ring Mounting, Extended Studs Shaft End, Belly Band

$181.00 USD

Sold Out

SKU:
D164
ID:
HM106-1S9-0010

PRODUCT INFO

Applications
4-speed motor designed for use on central heating and direct drive blowers |For use on Janitrol, Carrier, Day & Night and Westinghouse

Features
Automatic thermal protection |Can be stud or base mounted |Shaft is 1/2" diameter x 4-1/2" long with 2-1/2" flat |Rotation: CWSE

SPECIFICATIONS

Nameplate Specifications
UPC815585028727
Output HP1/6 - 1/8 - 1/10 - 1/2 Hp
Frequency60 Hz
Current6.5/4.8/4.3/3.7 A
Service Factor1
DutyAir Over
Frame42
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230 V
Speed1050 rpm
Phase1
Insulation ClassA
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles6
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension4.50 in
RotationClockwise Shaft End
Frame MaterialNa
Overall Length9.09 in
Shaft Diameter0.500 in
