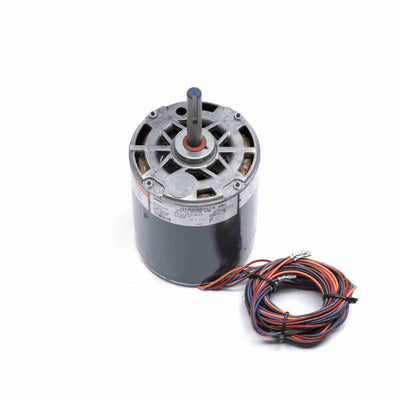

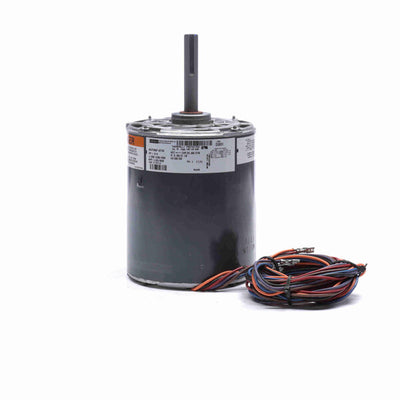

Fasco OEM Replacement Motor, 1125/950 RPM, 1-3/4 HP, 208-230/460 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • OEM Direct Replacement Motor
  • Permanent Split Capacitor
  • Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
  • Ball Bearing
  • 5/8" Diameter Shaft with Keyway
  • 97" Leads
  • Belly Band Mount
  • HM102-0054 replaces the following brands and item numbers: Trane and Fasco models: X70671653-01,X70671656-01, X70671654, X70671652-01, MOT9192, MOT9188, 7126-4088, 7126-4089, 7126-4090, 7126-4299

$412.00 USD

Title
Buy Now
SKU:
D2851
ID:
HM102-0054

PRODUCT INFO

Features
Single-speed, 50/60 Hz. Sealed ball bearings; open drip-proof. Automatic thermal protection; Class B insul., 40°C ambient. HM102-0054 has a keyed shaft.

SPECIFICATIONS

Nameplate Specifications
UPC818508022406
Output HP1-3/4 Hp
Frequency60 Hz
Current3.95/2.10 A
Service Factor1
DutyContinuous Air Over
Frame48 (5.6" Diameter)
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230/460 V
Speed1125/950 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature65 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingLug
Opp Drive End BearingBall
Shaft TypeKeyed
Frame Length6.07 in
Shaft Extension3.25 in
RotationCounterclockwise
Frame MaterialRolled Steel
Overall Length
10.46 in
Shaft Diameter0.620 in
