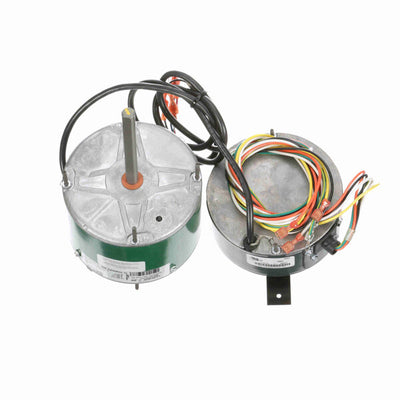

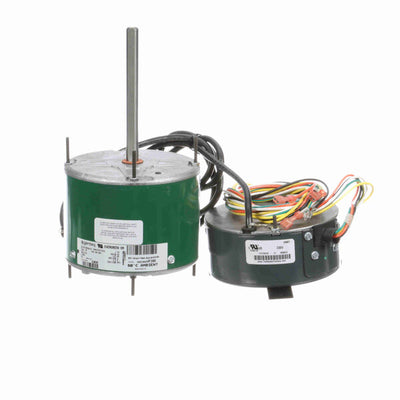

Genteq 6303R Evergreen OM ECM Condenser Fan Motor, 1/3 HP
The Genteq 6303R Evergreen OM is an electronically commutated condenser fan motor with remote-mount control. This 1/3 HP, 208–230V motor provides two operating speeds, 850 and 1100 RPM, for outdoor condenser fan applications.
Its 48-frame, totally enclosed air-over construction includes ball bearings, electronic thermal protection, a 1/2-inch-diameter shaft with a 5.5-inch extension, and motor-shell and end-shield mounting provisions. The 6303R has an extended shaft and separate control arrangement that distinguish it from the standard 6303 motor.
$303.00 USD
PRODUCT INFO
Product features
- Evergreen OM electronically commutated motor for outdoor condenser fan applications.
- Remote-mount control arrangement, distinguishing the 6303R from the standard 6303.
- Two operating speeds: 850 and 1100 RPM.
- Extended flat shaft, ball bearings, and mounting provisions on the shell and end shield.
SPECIFICATIONS
| Manufacturer | Genteq |
| Model | 6303R |
| Series | Evergreen OM |
| Motor type | Electronically commutated condenser fan motor |
| Control arrangement | Remote-mount control |
| Power rating | 1/3 HP |
| Voltage | 208–230 VAC |
| Phase | Single phase |
| Rated current | 3.5 A |
| Speeds | 850 / 1100 RPM (2 speeds) |
| Frame | 48 |
| Enclosure | Totally enclosed air over (TEAO) |
| Thermal protection | Electronically protected |
| Bearings | Ball |
| Shaft | 1/2 in. diameter × 5.5 in. extension, flat |
| Mounting | Round belly band; shell and end-shield mounting provisions |
| Overall motor length | 9.79 in. |
| Ambient temperature rating | 40°C |
