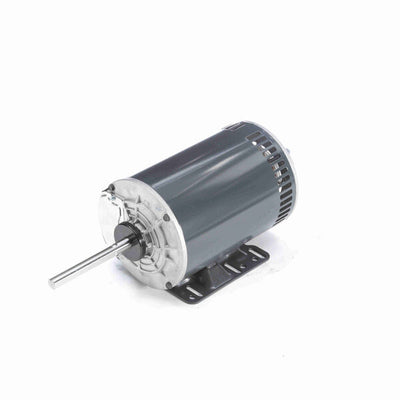

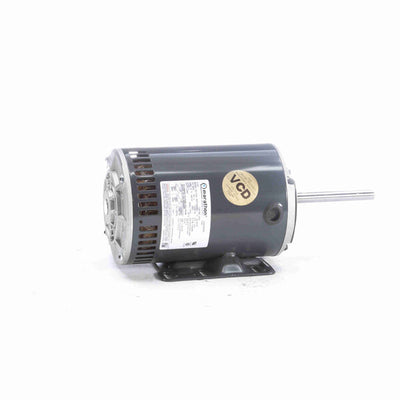

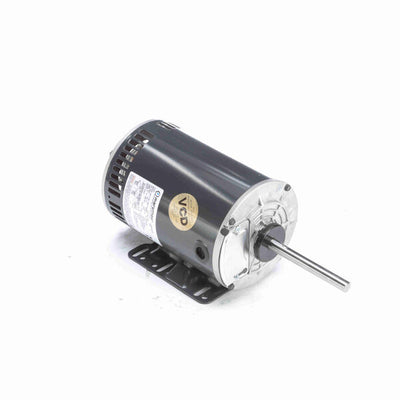

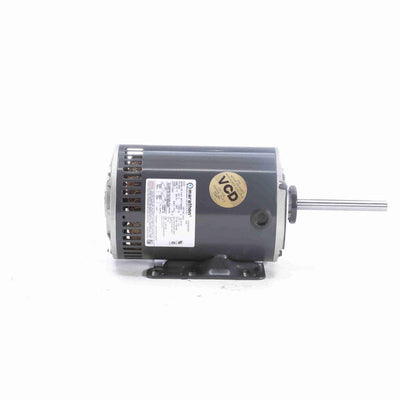

Marathon Condenser Fan Motor, 1140 RPM, 1-1/2 HP, 208-230/460 V, 56HZ Frame, Open Air Over

Availability:
Out-Stock
  • 70°C ambient
  • Enclosed shaft end bracket, vented frame
  • Continuous duty, air over
  • Automatic reset thermal protector
  • Shaft slinger, Threaded lead exit
  • Nameplated 60/50 hertz, 190/380 Volts, at next lower horsepower
  • Double sealed ball bearings
  • Flat and keyway on shaft
  • Patented VCD™ - Voltage Change Device
  • 56H, 143T, and 145T combination base with 12 mounting holes
  • 3 Phase

$496.00 USD

Sold Out

SKU:
X523
ID:
HM101-0136

PRODUCT INFO

Applications
Commercial condenser fans may be installed outdoors. Needs to be mounted within the airflow for proper cooling. Used on Trane, Carrier, Climtrol and York units 5 tons and larger

Features
Automatic reset thermal protector. Enclosed shaft end bracket, vented frame. Continuous duty, air over. 70°C ambient. Doubled sealed ball bearings. VCD™ voltage change device

SPECIFICATIONS

Nameplate Specifications
UPC722856048950
Output HP1-1/2 Hp
Frequency60/50 Hz
Current5.4-5.4/2.7 A
Service Factor1
DutyContinuous
Frame56HZ
Thermal ProtectionAutomatic Lock Rotor Only
ULRecognized
Voltage200-230/460 V
Speed1140 rpm
Phase3
Insulation ClassH
EnclosureOpen Air Over
Ambient Temperature70 °C
CSAY


Technical Specifications

Electrical TypeSquirrel Cage Induction Run
Poles6
MountingRigid Base
Opp Drive End BearingBall
Shaft TypeSingle Special Extension
Frame Length8.56 in
Shaft Extension5.06 in
RotationReversible
Frame MaterialRolled Steel
Overall Length:
15.68 in
Shaft Diameter0.625 in
