Goodman 3 Ton 16 SEER Heat Pump Split System (Heat/Cool)

Availability:
Out-Stock

Product Includes 2 items:
(1) Goodman 3 Ton 16 SEER Heat Pump Air Conditioner Condenser (GSZ160361)
(1) Goodman 3 Ton Air Conditioner Air Handler with Smart Frame Cabinet (ASPT37C14)

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

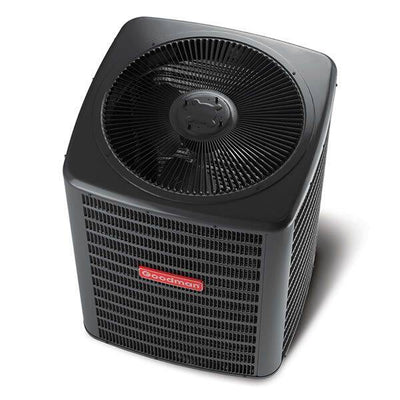

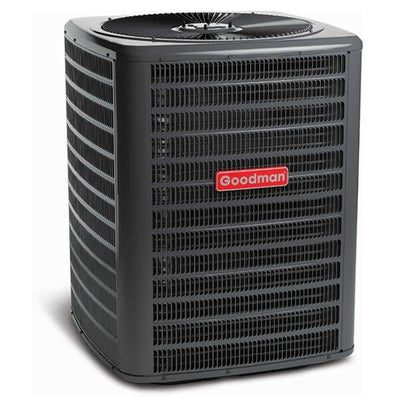

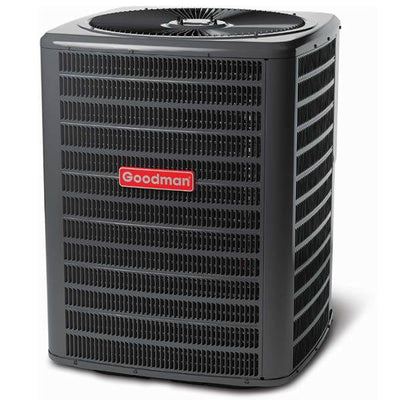

The Goodman GSZ16 GSZ160361 Heat Pump Air Conditioner Condenser

  • Quiet Condenser Fan Motor - High-efficiency, single-speed motor with special three blade fan design provides dependable, quiet airflow across condensing coil.
  • Efficient Cooling Capacity - Refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A refrigerant.
  • SmartShift Defrost Technology - Specialized time-delay defrost technology allows for a reliable, quiet and smooth transition when units enter defrost mode.
  • Quiet Operation - An acoustically engineered top on the unit helps reduce noise levels compared to units without sound control enhancements. Factory-Installed Bi-flow Liquid Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.
  • Factory-Installed Heater Band and Suction Line Accumulator - Ensures refrigerant is ready even in extreme external temperatures for smooth and energy-efficient performance.
  • Heavy-Gauge, Galvanized Steel Enclosure Cabinet -A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

Goodman ASPT37C14 Air Conditioner Air Handler

  • All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.
  • Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)
  • Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

The Goodman ASPT37C14 Air Conditioner Air Handler design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. These Goodman ASPT37C14 Air Conditioner air handler is ideal for either new or retrofit installations. All functional parts are covered by a 10-Year Parts Limited Warranty.

SPECIFICATIONS

General Information
Operating ModeHeating and Cooling
ConfigurationMulti-Position
DOE Regional Compliance
Nationwide


Performance
Capacity3.0 Tons
Cooling Capacity34200 BTU
Nominal Cooling Capacity36000 BTU
Heating Capacity
35000 BTU
SEER16.0
EER13.0
HSPF 9.5
Maximum Air Flow1060 CFM


Dimensions
Product Weight364 Pounds
Shipping Weight384 Pounds


Certifications
ETL ListedYes
AHRI CertifiedYes
AHRI Reference Number8331282
