Goodman 3 Ton 16 SEER Heat Pump Variable Speed Split System (Heat/Cool)
Product Includes 2 items:

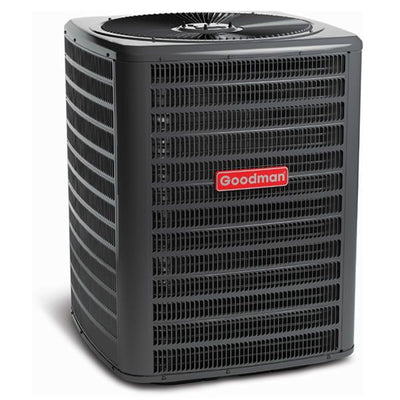

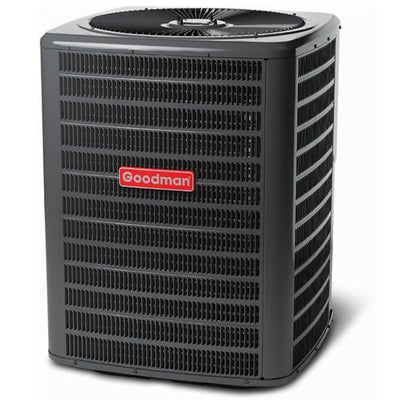

(1) Goodman 3 Ton 16 SEER Heat Pump Air Conditioner Condenser (GSZ160361);

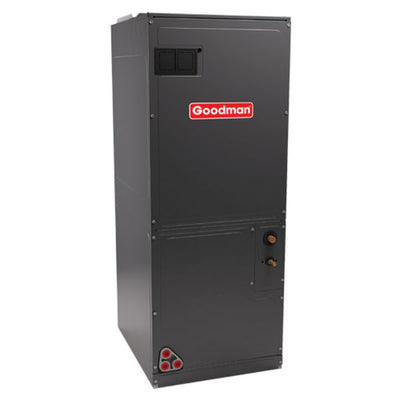

(1) Goodman 3 Ton Air Conditioner Air Handler Smart Frame Cabinet (AVPTC39C14)
PRODUCT INFO
A Goodman central air package is the perfect way to upgrade your home's HVAC system. The GSZ1636AVPT features a GSZ16 heat pump to provide both heating and cooling for your entire home. When paired with a variable speed air handler, specifically picked to optimize the heat pump with variable air speeds, this system provides high efficiency, low-cost comfort year round.
Advanced Coil Design
The condenser coil of this heat pump is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
Quiet Comfort
Goodman takes great pride in providing comfort that doesn't disrupt your home. The louvered top and three-bladed fan of the GSZ160361 were designed to reduce noise levels without compromising performance.
SmartShift
Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.
High-Efficiency Compressor
This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
All-Aluminum Coil
Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area for the air handler and optimizes heat transfer for efficient comfort.
Energy-Efficient Circulation
By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application.
Internal Thermostatic Expansion Valve
The AVPTC39С14 has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
Energy-Efficient Circulation
By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application.
Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.
SPECIFICATIONS
General Information | |
Operating Mode | Heating and Cooling |
Configuration | Multi-Position |
Performance | |
Capacity | 3.0 Tons |
Cooling Capacity | 32600 BTU |
Nominal Cooling Capacity | 36000 BTU |
SEER | 16.0 |
EER | 12.5 |
HSPF | 8.2 |
Maximum Air Flow | 1120 CFM |
Dimensions | |
Product Weight | 338 Pounds |
Shipping Weight | 358 Pounds |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
AHRI Reference Number | 10207417 |
