Daikin 24,000 BTU 18 SEER Heat Pump Condenser; Multi Zone

Availability:
In-Stock

This product requires two or more compatible indoor units for functionality.
SEER: 18; BtuH Cooling: 24,000; BtuH Heating: 24,000; CFM High: 2,094; Volts: 208/230; Amps Cooling: 22.6; Max. Fuse Size: 25; Liquid Conn.: 1/4"; Suction Fitting: 3/8"; Width: 34-1/4"; Height: 28-15/16"; Depth: 12-5/8"; Wt. Lbs.: 140;


Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

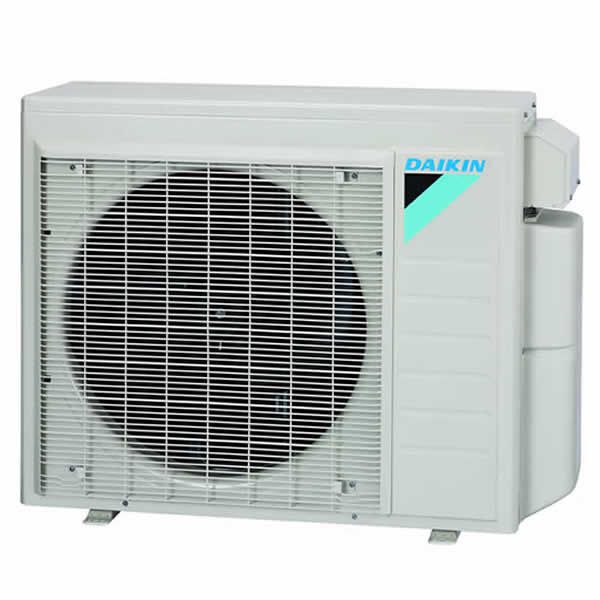

This product requires two or more compatible indoor units for functionality. This product requires two or more compatible indoor units for functionality.Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This is a 3MXL24RMVJU outdoor condenser unit for use in a 3-zone system. The MXL is Daikin's cold climate line, designed to operate in more frigid climates than the standard line. A broad range of accessories are available to add to your system as well, which when combined with Daikin's extensive experience with building efficient units provides a solution to any home's heating and cooling needs.

  This product requires at least two compatible Daikin mini split indoor units and the following accessories for installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.

  Product Compatability

  • Daikin CTXS Wall Mounted Indoor Units
  • Daikin FTXS Wall Mounted Indoor Units
  • Daikin FDXS Concealed Duct Indoor Units
  • Daikin FFQ Ceiling Cassette Indoor Units
  • Daikin FVXS Floor Mounted Indoor Units

SPECIFICATIONS

General Information
TypeOutdoor Condenser
Product LineAurora
Operating ModeHeating and Cooling
Maximum Number of Zones3
Multi-Zone CompatibleYes
Refrigerant TypeR-410A
Installation LocationOutdoor



Performance
Cooling BTU 24000
Minimum Sound Level54 dB
Low Ambient HeatingNo
Minimum Outdoor Temperature for Heating-13 F
Minimum Outdoor Temperature for Cooling14 F



Dimensions
Maximum Line Length230 Feet
Line Set A Liquid Connection1/4 Inch
Line Set A Gas Connection3/8 Inch
Line Set B Liquid Connection1/4 Inch
Line Set B Gas Connection1/2 Inch
Line Set C Liquid Connection1/4 Inch
Line Set C Gas Connection1/2 Inch
Product Height28 15/16 Inches
Product Width34 1/4 Inches
Product Depth12 5/8 Inches
Product Weight137 Pounds
Shipping Weight147 Pounds


Certifications
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
