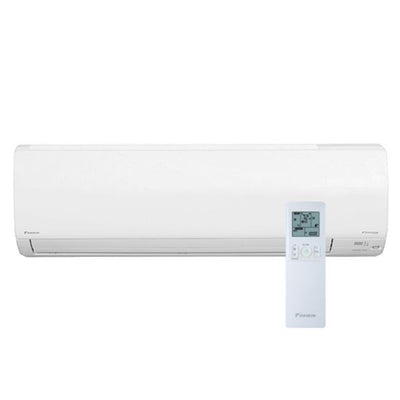

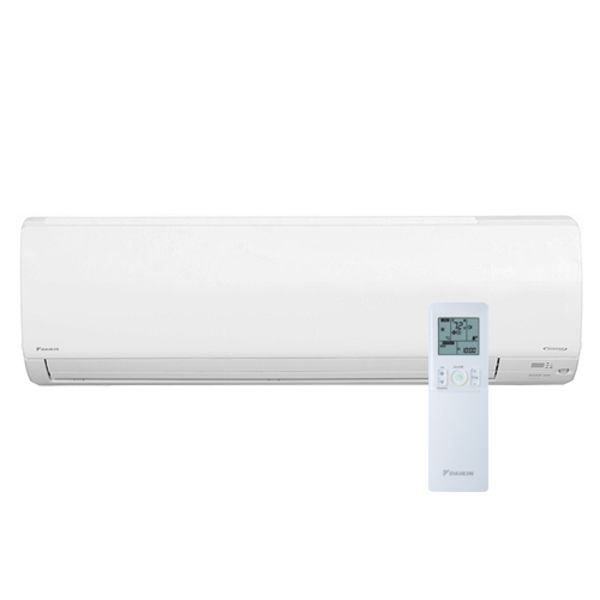

Daikin 24,000 BTU Wall Mounted Air Handler; Single Zone (Heat Pump)

Availability:
In-Stock

This product requires a compatible outdoor condenser for functionality.
Style: Wall Mounted; BtuH Cooling: 21,200; BtuH Heating: 21,200; Volts: 208/230; Sound Pressure Cooling dBA: 47; Sound Pressure Heating dBA: 47; Liquid Conn.: 1/4"; Suction Fitting: 5/8"; Width: 46-1/8"; Height: 12-5/8"; Depth: 9-1/2"; Wt. Lbs.: 31; Wifi Enabled: N; Nom. Capacity: 24000;

Title

For pricing and to purchase this product:

Please register, login, or contact us for a quote request

PRODUCT INFO

  • Inverter variable speed compressor
  • Automatic operation for year round comfort
  • Vertical auto swing air movement
  • Humidity control
  • Auto fan speed
  • Remote controller with backlit display
  • 24 hour on / off timer
  • Auto restart after power failure
  • Self diagnosis with digital display
  • 208/230V

  This product requires a compatible Daikin outdoor condenser and the following accessories for installation:

Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.

SPECIFICATIONS

General Information
TypeWall Mounted
Product Line17-Series
Operating ModeHeating and Cooling
Multi-Zone CompatibleNo
Refrigerant TypeR-410A
Remote ControlWireless
Indoor Unit Size(s) 24
Installation LocationIndoor



Performance
Cooling BTU 24000
Cooling Capacity24000 BTU
Maximum Air Flow555 CFM
Minimum Air Flow405 CFM
Minimum Sound Level41 dB
Maximum Sound Level 47 dB


Dimensions
Gas Connection Size5/8 Inch
Liquid Connection Size1/4 Inch
Condensate Drain Size3/4 Inch
Product Height12 5/8 Inches
Product Width46 1/8 Inches
Product Depth9 1/2 Inches
Product Weight31 Pounds



Certifications
AHRI CertifiedYes
