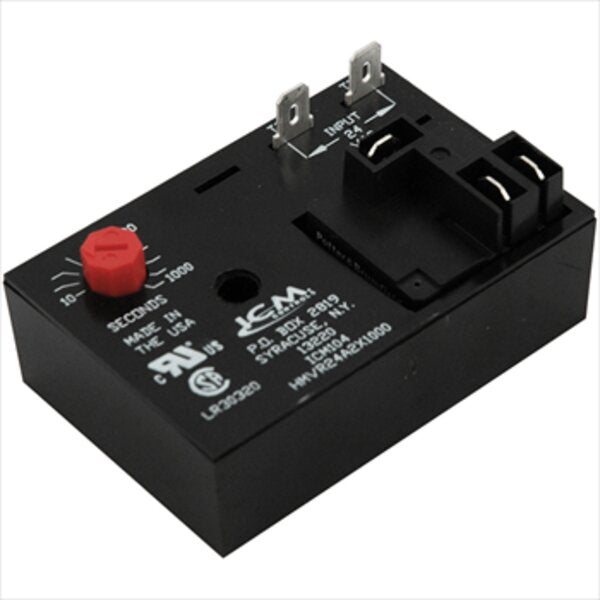

ICM ICM104 Delay on Make Timer (10-1,000 Second Knob Adjust. Delay)
Replaces: Mars: 32394, 32398
$38.79 USD
SKU:
ICM104B
ID:
PH501-2S9-3214
Categories:
PRODUCT INFO
Delay on Make Timers are ideal for compressor staging and stagger starting multiple motors and other equipment. Helps to reduce power surges.
Features
- Highly precise digital circuitry
- High power, SPDT relay output
- Input to output isolation
- Works with anticipator-type thermostats
- Repeat accuracy .5% over voltage and temperature range
- Rugged, compact package
- 115 & 240 VAC models available
Mode of Operation - When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
SPECIFICATIONS
| General Information | |
| Time Delay | 10-1000 Sec Knob Adjustable |
| Voltage | 18/30 VAC |
| - N.C. | 10 amps @ 240 VAC |
| - Knob Adjst. Time Delay | 10-1000 Seconds |
| Size | 2" x 3" |
| Product Type | Delay on Make |
| - N.O. | 20 amps @ 240 VAC |
| - Form | SPDT, 1 form C |
| - Holding Current | 40 mA |
