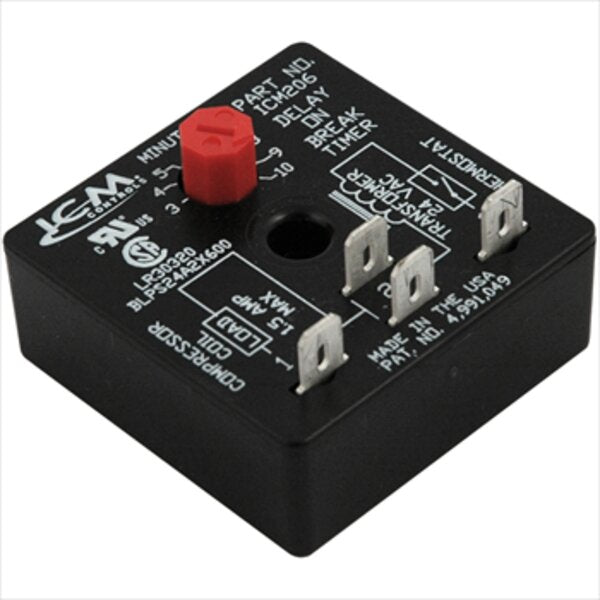

ICM ICM206 Delay on Break Timer (3-10 Minute Adjustable Delay)

Delay on Break Timers ("anti-short cycle", "ON delay on break") helps to protect air conditioning, refrigeration and heat pump equipment from damage which may be caused by the rapid short cycling of compressors.

Features

• Brownout protection
• UL 873 recognition as compressor controller
• Helps prevent scroll compressor reversal
• 3-10 minute adjustable time delay
• Fast response time: 16ms
• Prevents low voltage starts
• Eliminates relay chatter due to thermostat bounce or tampering
• Works with anticipator-type thermostats Patented: US Parent No. 4,991,049

Mode of Operation - Upon application power, the load is energized. When the thermostat or other switch opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. Restart occurs after the delay period has elapsed.
