ICM ICM495-30A-F 30 Amp Non-Fused Disconnect with Internal Surge Protection

Availability:

In-Stock

Replaces: 30A – MARS: 83916, RectorSeal: 96417 w/ RSH-50

$119.10 USD

Default Title

Buy Now

Add to wishlist

SKU:

ICM495-30A-F

ID:

PH501-2S9-3261

Categories:

Controls / HVAC / Multi-Purpose / PLUMBING / Thermostats & HVAC Controls / Timers

PRODUCT INFO

UL Listed Electrical Disconnect including both enclosure & surge protector
120VAC single-phase, 240VAC split-phase
Features an internal surge protective device
Maximum Surge Current Rating of 100kA
Highest UL rating for nominal discharge current (in 20kA), for increased longevity & durability of the SPD
Constructed with 2 high-quality thermally protected MOV’s (TFMOV)
Completely factory wired for quick and easy installation
NEMA type 3R rated powder coated metal enclosure for indoor/outdoor use
Fully accessible mounting holes, no disassembling required
Braided strap thoroughly grounding both the enclosure and cover

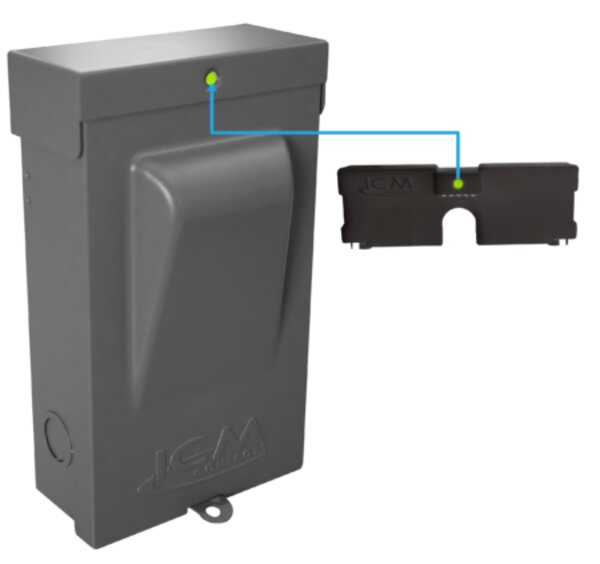

LED indicator light showing when surge protection is operational
30A Fused & 60A non-fused models available
Limited lifetime product, up to a 3-year $10,000 connected equipment warranty

SPECIFICATIONS

General Information
Service Voltage	Split Phase 240 VAC; 30A at -40°C min. and 25°C max., 240 VAC; 25A at -40°C min. and 55°C max., 240VAC; 60A at -40°C min. and 55°C max.
Short Circuit Current Rating (SCCR)	10 kA
Maximum Surge Current	100 kA (single event)
Nominal Discharge Current (In)	20 kA (15 multiple events)
SPD Type	Type 2 applications only
Surge Protection Technology	TFMOV
Protection Mode	L1-L2, L1-G, L2-G
Maximum Continuous Operation Voltage (MCOV)	L-L: 300 VAC, L-G: 150 VAC
VPR (Vpk	Mode: L-L = 1200, L-N = 700
Input Power Frequency	50/60 Hz
Diagnostics	Green LED indicates surge protection present
Enclosure Rating	NEMA/Type 3R metal enclosure for outdoor and indoor installation
Installation Point	Located within sight of the motor controller/equipment
Dimensions	9.0” L x 5.25” W x 2.50” D
Operating Temperature	-40°F to 131°F (-40°C to 55°C)
Operating Humidity	Less than 85%, non-condensing
Operating Altitude	Less than 2000 meters
Agency Certification and Approvals	ANSI/UL1449 5th Edition cULus Listed Device
