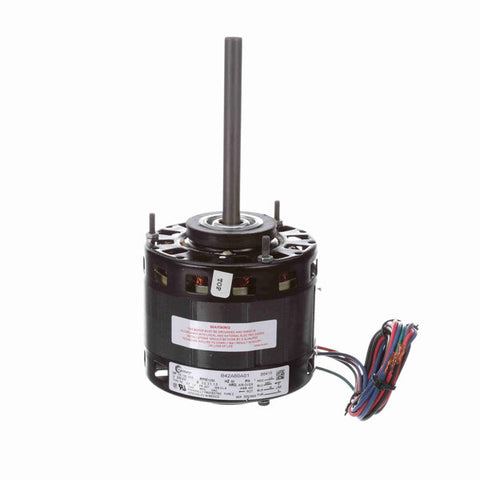

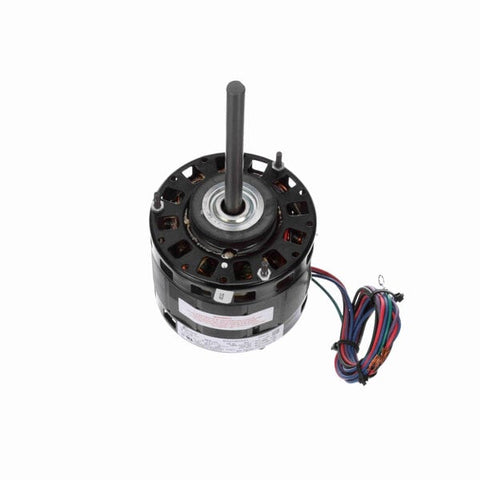

Century Direct Drive Motor, 1050 RPM, 1/5-1/8-1/10 HP, 208-230 V, 42 Frame, Open Air Over
- Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
$294.00 USD
PRODUCT INFO
Applications
Direct drive furnace blowers, shaft mounted fans, unit heaters or any continuous duty application where the motor is located in the airstream
Features
Automatic reset thermal protectors. All motors have 30" leads
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674012685 |
| Output HP | 1/5-1/8-1/10 Hp |
| Frequency | 60 Hz |
| Current | 3.2,2.1,1.5 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 5.5 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | N/A |
| Overall Length | 9.38 in |
| Shaft Diameter | 0.500 in |
