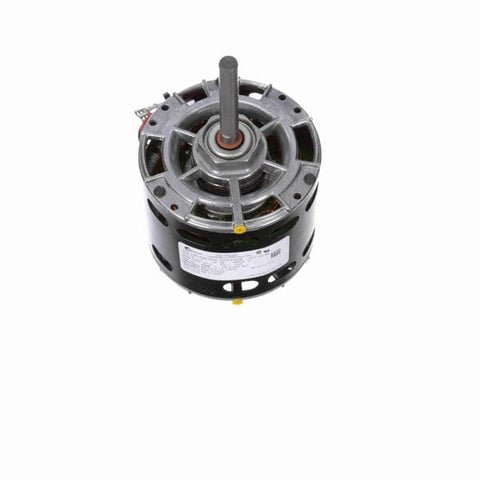

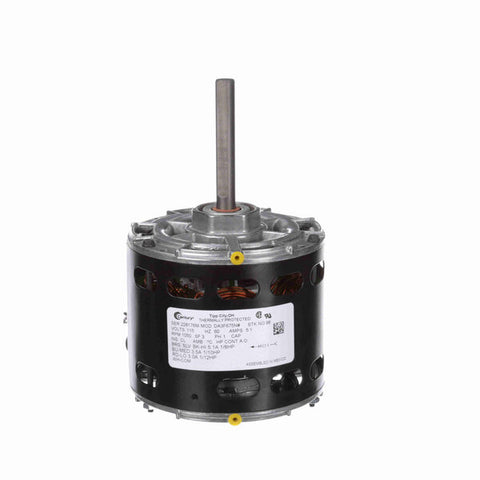

Century Direct Drive Motor, 1050 RPM, 1/8-1/10-1/12 HP, 115 V, 42 Frame, Open Air Over
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 32" Leads
- Tapped Holes for Coleman Mount
$278.25 USD
PRODUCT INFO
Applications
Furnace blowers, attic ventilators, air handlers and fan coil units
Features
Continuous duty. Thermally protected
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674006141 |
| Output HP | 1/8, 1/10, 1/12 Hp |
| Frequency | 60 Hz |
| Current | 5.1 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 6 |
| Mounting | Round Belly Band |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.67 in |
| Shaft Extension | 6.44 in |
| Rotation | Clockwise Shaft End |
| Frame Material | Rolled Steel |
| Overall Length | 7.96 in |
| Shaft Diameter | 0.500 in |
