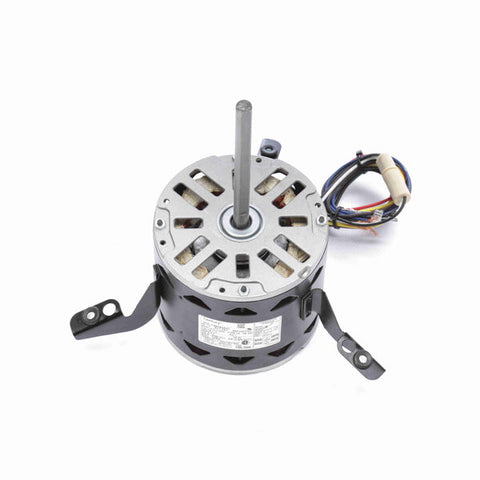

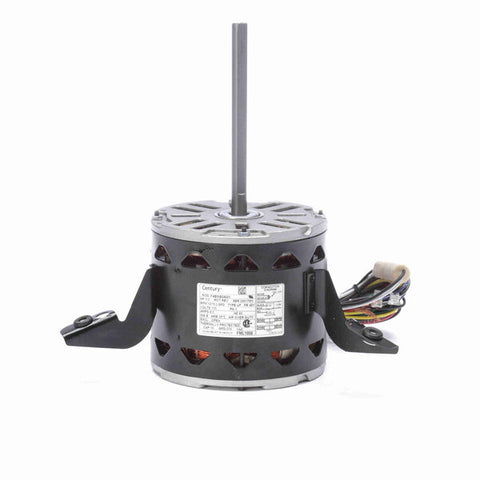

Century Direct Drive Motor, 1075 RPM, 1/2 HP, 115 V, 48 Frame, Open Air Over
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 50°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Flex Mount
$379.05 USD
PRODUCT INFO
Features
Automatic thermal protection. Reversible rotation. Shaft: 1/2" x 6" long. Leads: all 26" long. Lugs: three, 120° apart. Capacitor not included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674021175 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 8.5 A |
| Service Factor | 1 |
| Duty | Continous |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 50 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Flexible Arms |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 4.25 in |
| Shaft Extension | 6 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 10.86 in |
| Shaft Diameter | 0.500 in |
