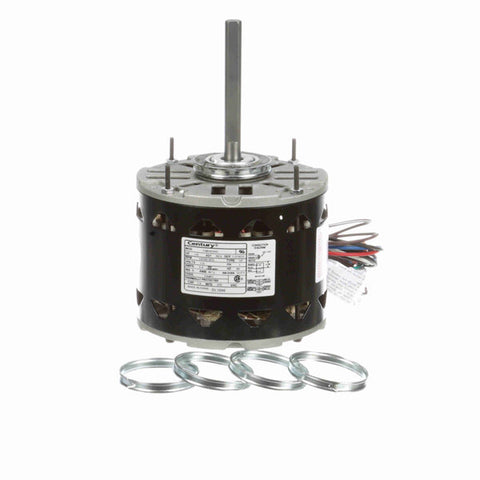

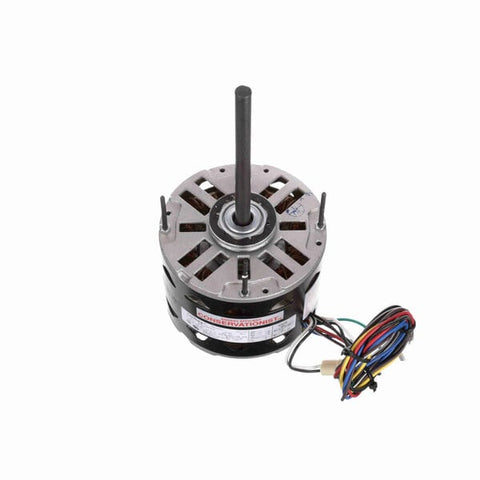

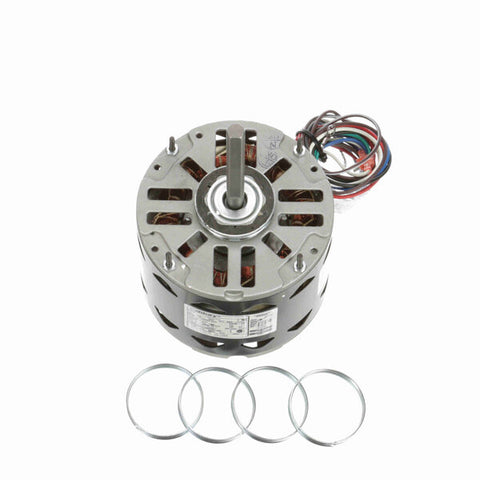

Century Direct Drive Motor, 1075 RPM, 1/3 HP, 115 V, 48 Frame, Open Air Over
- Fan Coils - Dual Wheel Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mount
$155.40 USD
PRODUCT INFO
Applications
Designed as replacements for direct drive furnaces, air conditioners, exhaust fans, etc.
Features
Automatic thermal protection. Reversible rotation. Resilient rings included
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674018557 |
| Output HP | 1/3 Hp |
| Frequency | 60 Hz |
| Current | 5.4 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length | 3.88 in |
| Shaft Extension | 4.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 9.49 in |
| Shaft Diameter | 0.500 in |
