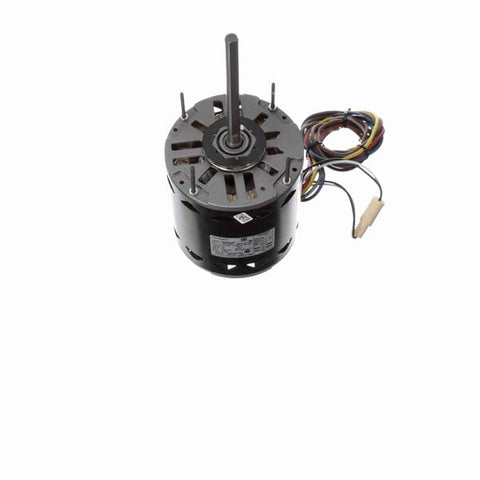

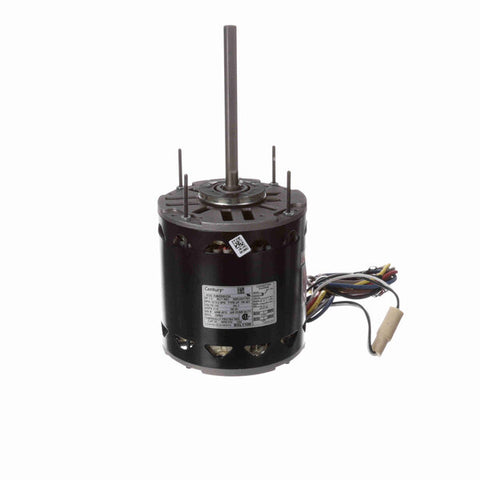

Century Direct Drive Motor, 1075 RPM, 1 HP, 115 V, 48 Frame, Open Air Over
- Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
$432.60 USD
PRODUCT INFO
Applications
Replaces motors used in the higher tonage gas and electric furnaces
Features
All-angle ball bearings. Class B insulation, 40°C ambient. Includes two 2-1/4" mounting rings with two 2-1/2" mounting adapters. Rotation is plug reversible
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674013620 |
| Output HP | 1 Hp |
| Frequency | 60 Hz |
| Current | 11.6 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 5.25 in |
| Shaft Extension | 6.4 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.74 in |
| Shaft Diameter | 0.500 in |
