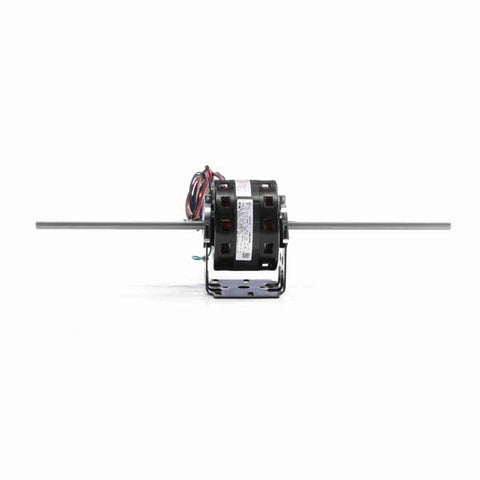

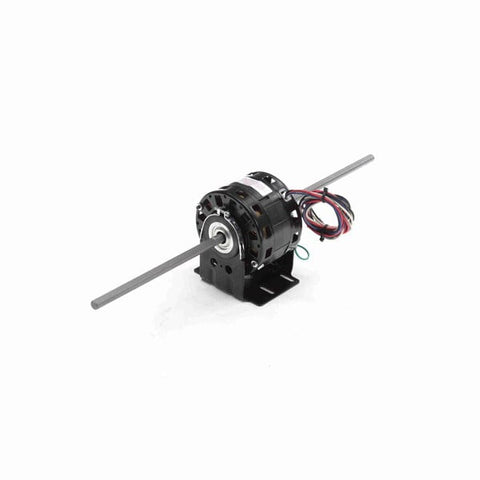

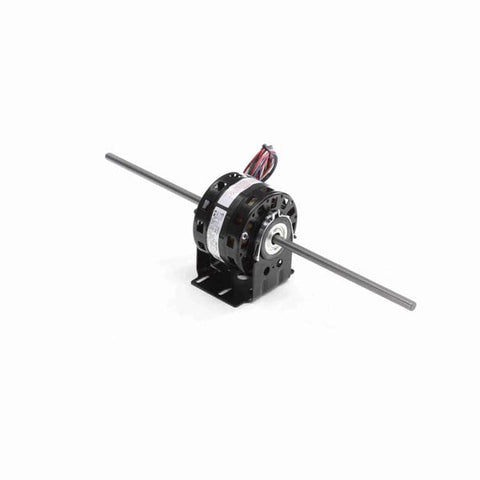

Century Direct Drive Motor, 1550 RPM, 1/10-1/15-1/20 HP, 115 V, 42 Frame, Open Air Over
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Double Flats
- 38.5" Leads with Quick Connect Terminals
- Resilient Base
$297.15 USD
PRODUCT INFO
Features
Automatic reset thermal protection, 30" leads. Shaft flatted, both extensions. Shaft is same length at both ends
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674018304 |
| Output HP | 1/10,1/15,1/20 Hp |
| Frequency | 60 Hz |
| Current | 3.5,1.7,1.4 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1550 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Shaded Pole |
| Poles | 4 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 9.3X.5X9.3 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 22.00 in |
| Shaft Diameter | 0.500 in |
