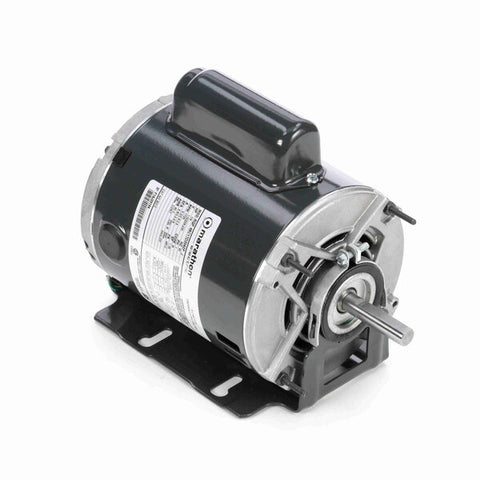

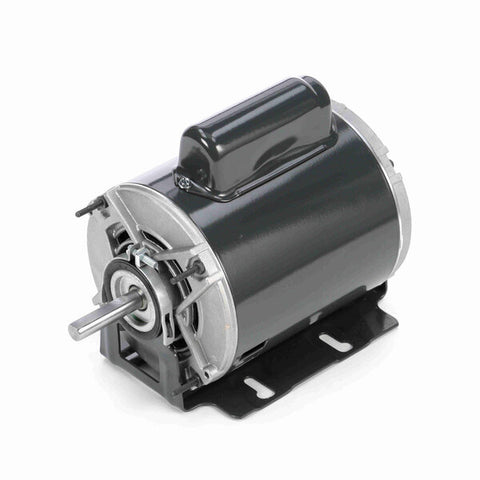

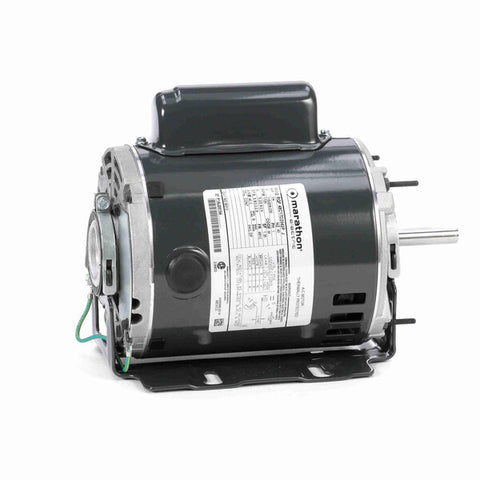

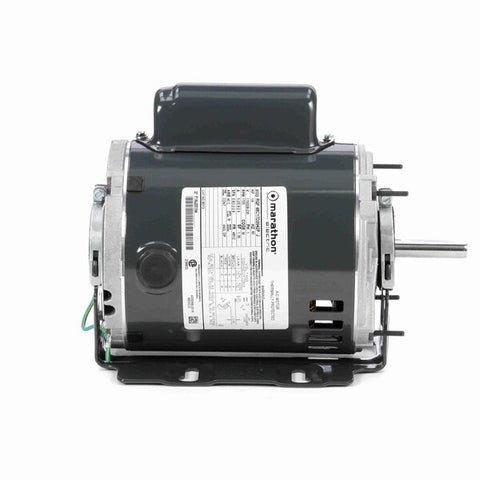

Marathon Belt Drive Motor, 1725 RPM, 1/4 HP, 115/208-230 V, 48Y Frame, Open Drip Proof
- Heavy gauge steel frame and base
- Ball bearings
- Consult factory for accessory kit and/or modification selection
- 48Y and 48YZ Frame have 48/56 Frame mounting holes
- 5/8" thru-bolts, shaft end
- 1/2" x 1-7/8" shaft with 1-5/8" flat
$264.00 USD
PRODUCT INFO
Applications
Residential and commercial fan and blowers applications where high starting torque is required
Features
Automatic reset overload protected.Continuous duty ball bearing motors designed for belt driven fans and blowers, roof ventilators and exhaust fans.60 Hz, permanently lubricated, open dripproof, 40°C ambient.Reversible rotation.Resilient base.Keyed 5/8" shaft except as noted.1-5/8" long flat on shaft
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 722856062031 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 5.2/2.8-2.6 A |
| Service Factor | 1.35 |
| Efficiency | 57.5 % |
| Duty | Continuous |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115/208-230 V |
| Speed | 1725 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Drip Proof |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Capacitor Start Induction Run |
| Poles | 4 |
| Mounting | Resilient Base - Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Extension | 2.01 in |
| Rotation | Selective Counterclockwise |
| Frame Material | Rolled Steel |
| Overall Length | 9.95 in |
| Shaft Diameter | 0.500 in |
