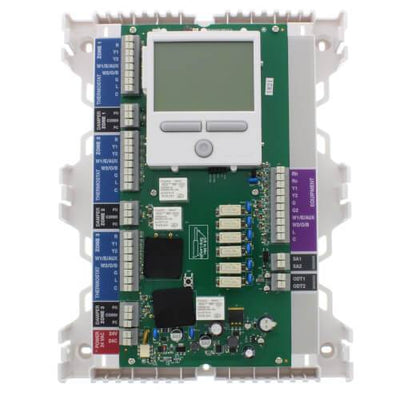

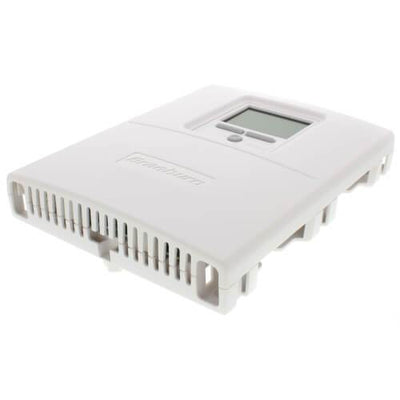

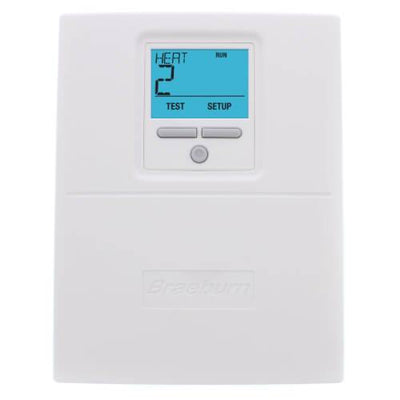

Braeburn 3-Zone Control Panel Model 140332
Braeburn 3-Zone Control Panel Model 140332
Availability:
In-Stock
Warranty: 5 Year
$152.73 USD
SKU:
BR140332
ID:
PH501-0056
PRODUCT INFO
Features:
- Controls up to 3 heating and 2 cooling stages
- Compatible with electric, gas, oil and heat pump equipment–including dual fuel
- Can be used with virtually all low-voltage thermostats and dampers from other manufacturers
- Large 5.5 sq. in. display shows system status
- Dual fuel operation with Braeburn outdoor sensor
- LED’s show all calls at a glance
- Push-in terminals for easy wiring– no screwdriver needed
- Flexible staging controlled by panel or thermostat
- Push button set-up without dip switches
- High/Low Limit protection with optional supply air sensor
Warranty: 5 Year
SPECIFICATIONS
| Panel Power: | 6 VA maximum | |
| System Power: | 100 VA maximum, 50 VA maximum per zone | |
| Protection: | Electronic self resetting, current limiting on each zone | |
| Equipment: | Relay driven 2A at 24 VAC | |
| Zone Damper Control: | Compatible with virtually all 24V powered and spring dampers | |
| Indicators: | LED’s for all thermostats, equipment and dampers, LCD display for configuration | |
| Configuration | Conventional and Heat Pump equipment | |
| Terminals: | Panel Power: 24V, 24C Equipment: Rh, Rc, Y1, Y2, G, G2, W1/E/AUX, W2/O/B, L, C Thermostats (3 each): R, Y1, Y2, W1/E/AUX, W2/O/B, G, L, C Dampers (3 each): PO, C, PC Supply Air Inputs: SA1, SA2 Outdoor Air Inputs: ODT1, ODT2 |
| Power | 24 VAC | |
| Outdoor Sensor | Optional (Model 5490) | |
| Supply Air Sensor | Optional (Model 149156) | |
| Indicators | LED’s for all thermostats, equipment and dampers, LCD for configuration | |
| Thermostat | Conventional or Heat Pump Up to 3H / 2C | |
| Construction | PC Board in High Impact Housing | |
| Mounting | Wall or Return Air Plenum Mount | |
| Environmental | Storage -40˚ F to 167˚ F (-40˚ to 75˚ C) Operating -22˚ F to 167˚ F (-30˚ to 75˚ C) |
ACCESSORIES
Warranty: 5 Year
SKU:
BR5490
Vendor:
Braeburn
Type:
Thermostats Accessories
Availability:
In-Stock
$20.32 USD
Braeburn Static Pressure Controls are designed to control HVAC system bypass dampers. This complete kit comes with a deluxe plated control, relay, pressure pickup, and...
SKU:
BR149020
Vendor:
Braeburn
Type:
Zoning System Accessories
Availability:
In-Stock
$81.25 USD
Braeburn zoning transformers have 120 VAC input and 24 VAC output. UL listed and convenient mounting features for easy installation. Includes mounting plate, 40 VA,...
SKU:
BR149040
Vendor:
Braeburn
Type:
Zone Transformer
Availability:
In-Stock
$21.27 USD
Warranty: 1 Year
SKU:
BR149156
Vendor:
Braeburn
Type:
Zoning System Accessories
Availability:
In-Stock
$19.98 USD
