Braeburn Builder Model 2220NC Programmable Thermostat (2 Heat/1 Cool)

Availability:
In-Stock
  • Programming: 7 Day, 5-2 Day, or Non-Programmable
  • Warranty: 5 Year

$48.33 USD

Title
Buy Now

PRODUCT INFO

Features

  • 5-2 Day Programming

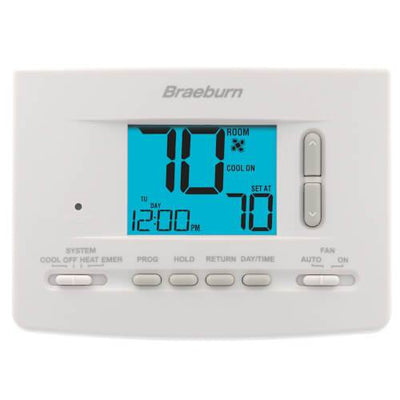

  • Large 2 Sq. In. Display with
  • Bright Blue Backlight
  • Adjustable Temperature Limits
  • Hardwire or Battery Powered
  • Permanent Memory Retains Settings
  • Filter Check Monitor
  • Adjustable Temperature Differential
  • Adaptive Recovery Mode (ARM)
  • Meets Energy Aware Guidelines
  • Auxiliary Heat Status Indicator
  • ESD Guard Electronic Circuitry
  • Compressor Short Cycle Protection
  • Temporary Program Override
  • Programmable Extended Hold Mode
  • Front Access Reset Button
  • F° / C° Switch
  • English / Spanish Packaging and Instruction Card with FREE Contractor Branding
  • 5 Year Warranty

Braeburn 2220NC Replaces*

  • Honeywell* TH2210, TH4210
  • Emerson* 1F72-151, 1F73-174, 1F82-0261

*Verify specific application requirements. All trademarks are the property of their respective owners.


SPECIFICATIONS




Dimensions:3.62” x 4.72” x 1.38”

Electric Rating:24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 4 amp total maximum load (all terminals)

AC Power:18-30 Volt AC

DC Power:3.0 Volts DC (2 “AA” Alkaline batteries included)

Compatibility:Conventional systems with up to two stages of heating and one stage of cooling; Heat pump systems with one compressor and up to one auxiliary stage; 250mv - 750mv millivolt heating systems

Control Range: 45° to 90° F (7° to 32° C)

Display Range:40° to 99° F (5° to 37° C)

Accuracy:+/- 1° F (+/- .5° C)

Temperature Differential:1st Stage - .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) 2nd Stage - 2°, 3°, 4°, 5°, or 6° F (1°, 1.5°, 2°, 2.5°, or 3° C)

Storage Temperature:14° to 140° F (-10° to 60° C)

Operating Humidity:5% to 95% Relative Humidity

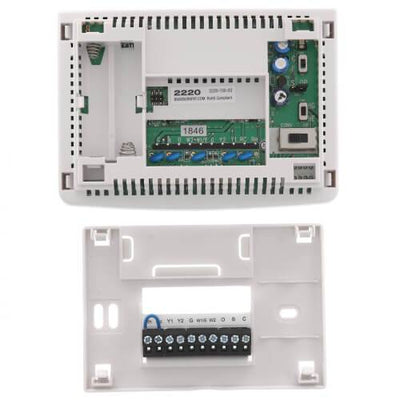

Terminations:Rc, Rh, B, O, Y1, E/W1, G, C, W2
