Braeburn Builder Value Model 1025NC Heat Only Thermostat (Single-Stage)
Warranty: 5 Year
$40.02 USD
SKU:
BR1025NC
ID:
PH501-0007
PRODUCT INFO
Features

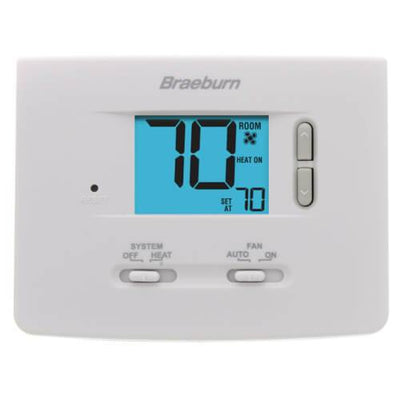

- Large 2 Sq. In. Display with Bright Blue Backlight
- Compatible with 2 or 3 Wire Hydronic Zone Systems
- Adjustable Temperature Limit
- Hardwire or Battery Powered
- Permanent Memory Retains Settings
- Low Battery Indication
- Front Access Reset Button
- F° / C° Switch
Warranty: 5 year
SPECIFICATIONS
| Dimensions: | 3.62” x 4.72” x 1.38” | ||
| Electric Rating: | 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 2 amp total maximum load (all terminals) | ||
| AC Power: | 18-30 Volt AC | ||
| DC Power: | 3.0 Volts DC (2 “AA” Alkaline batteries included) | ||
| Compatibility: | Single stage conventional systems 2 or 3 wire hydronic zone systems 250mv - 750mv millivolt heat only systems | ||
| Control Range: | 45° to 90° F (7° to 32° C) | ||
| Display Range: | 40° to 99° F (5° to 37° C) | ||
| Accuracy: | +/- 1° F (+/- .5° C) | ||
| Temperature Differential: | 5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) | ||
| Storage Temperature: | 14° to 140° F (-10° to 60° C) | ||
| Operating Humidity: | 5% to 95% Relative Humidity | ||

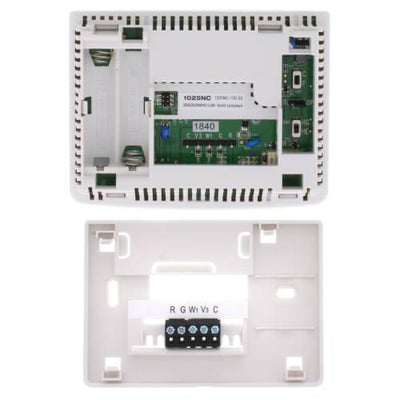

| Terminations: | R, G, W1, V3, C |
