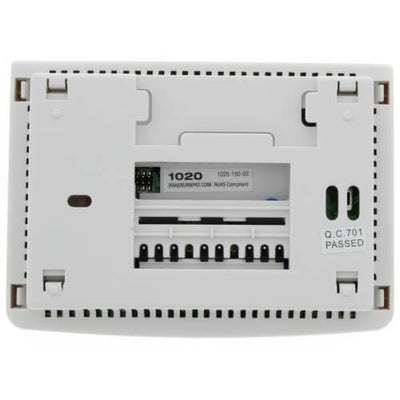

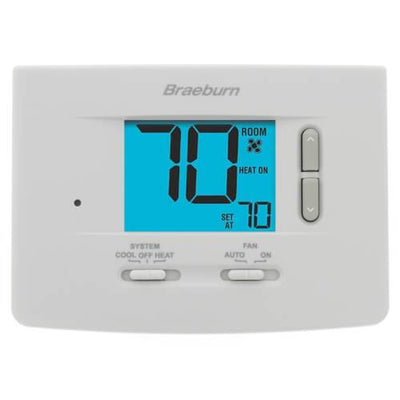

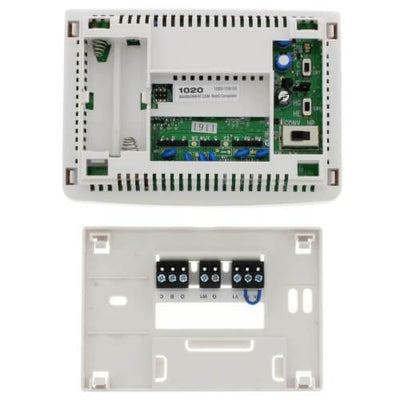

Braeburn Economy Model 1020 Thermostat (1Heat/1Cool)

Availability:
In-Stock
Warranty: 5 Year

$36.00 USD

Title
Buy Now

PRODUCT INFO

Features:

  • Economy Series
  • Large 3 Sq. In. Display with Bright Blue Backlight
  • Adjustable Temperature Limits
  • Hardwire or Battery Powered
  • Permanent Memory Retains Settings
  • Compressor Short Cycle Protection
  • Adjustable Temperature Differential
  • Separate "O" and "B" terminals
  • Low Battery Indicator
  • ESD Guard Electronic Circuitry
  • Front Access Reset Button
  • Fahrenheit/Celsius Switch
  • Gas/Electric Fan Switch
  • English/Spanish Packaging and Instructions

Warranty: 5 Year

SPECIFICATIONS




Dimensions:
3.70” x 5.16” x 1.38”

Electric Rating:
24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal
3 amp total maximum load (all terminals)

AC Power:
18-30 Volt AC

DC Power:
3.0 Volts DC (2 “AA” Alkaline batteries included)

Compatibility:
Single stage gas, oil or electric systems Single stage heat pump systems 250mv – 750mv millivolt heating systems

Control Range:
45° to 90° F (7° to 32° C)

Display Range:
40° to 99° F (5° to 37° C)

Accuracy:
+/- 1° F (+/- .5° C)

Temperature Differential:
0.5°, 1°, or 2° F (0.2°, 0.5°, or 1.0° C

Storage Temperature:
14° to 140° F (-10° to 60° C)

Operating Humidity:
5% to 95% Relative Humidity

Terminations:
Rc, Rh, O, B, Y1, W1, G, C
