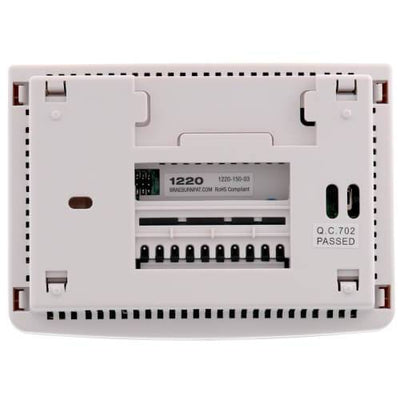

Braeburn Economy Model 1220 Thermostat (2 Heat/2 Cool)

Availability:
In-Stock
Warranty: 5 Year

$44.87 USD

Title
Buy Now

PRODUCT INFO

Features

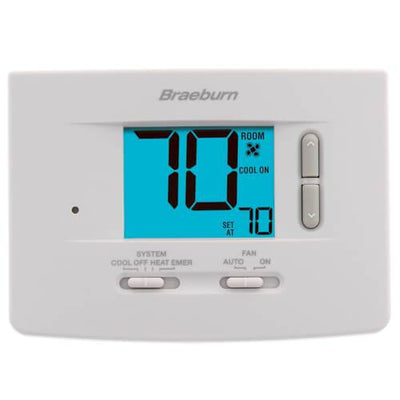

  • Large 3 Sq. In. Display with Bright Blue Backlight
  • Adjustable Temperature Limits
  • Hardwire or Battery Powered
  • Permanent Memory Retains Settings
  • Separate O & B Terminals
  • Compressor Short Cycle Protection
  • Adjustable Temperature Differentials
  • Auxiliary Heat Indicator
  • Low Battery Indication
  • ESD Guard Electronic Circuitry
  • Front Access Reset Button
  • F / C Switch
  • Gas / Electric Fan Switch
  • Mount to Horizontal Box

Warranty: 5 Year

SPECIFICATIONS




Dimensions:
3.70” x 5.16” x 1.38”

Electric Rating:
24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 4 amp total maximum load (all terminals)

AC Power:
18-30 Volt AC

DC Power:
3.0 Volts DC (2 “AA” Alkaline batteries included)

Compatibility:
Conventional systems with up to two stages of heating and two stages of cooling; Heat pump systems with one compressor and up to one auxiliary stage; 250 - 750 millivolt heating systems

Control Range:
45° to 90° F (7° to 32° C)

Display Range:
40° to 99° F (5° to 37° C)

Accuracy:
+/- 1° F (+/- .5° C)

Differential:
1st Stage - .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) 2nd Stage - 2°, 3°, 4°, 5°, or 6° F (1°, 1.5°, 2°, 2.5°, or 3° C)

Storage Temperature:
14° to 140° F (-10° to 60° C)

Operating Humidity:
5% to 95% Relative Humidity

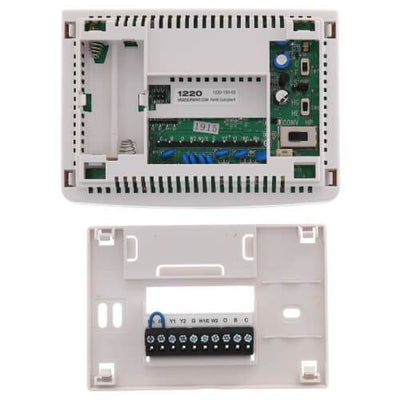

Terminations:
Rh, Rc, O, B, C, Y1, Y2, E/W1, G, W2
