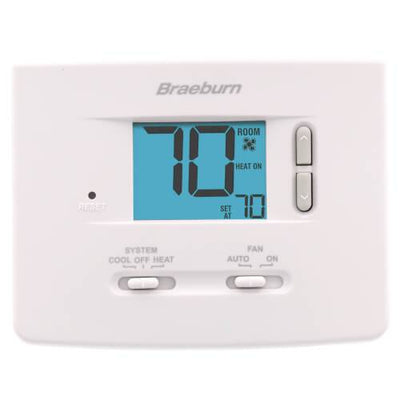

Braeburn Builder Value Model 1020NC Dual Powered Thermostat (Single-Stage)
Braeburn 1020NC single-stage dual-powered thermostat is a non-programmable 1 heat / 1 cool thermostat for compatible conventional and single-stage heat-pump systems.
Product highlights
- Non-programmable control
- 1 heat / 1 cool
- 24V AC or battery-powered operation
- Large backlit display
- Adjustable temperature limits
- Permanent memory retains settings
- Compressor short-cycle protection
- Separate O and B terminals
Specifications
- Model / SKU: 1020NC / BR1020NC
- Power: 18-30V AC or two AA batteries
- Dimensions: 3.62 in H x 4.72 in W x 1.38 in D
Compatibility note: Verify system type, stages, wiring terminals, control voltage, and mounting requirements before replacement.
$40.02 USD
SKU:
BR1020NC
ID:
PH501-0006
PRODUCT INFO
Features
- Large 2 Sq. Inch Display w/ Bright Blue Backlight
- Adjustable Temperature Limits
- Hardwire or Battery Powered
- Permanent Memory Retains Settings
- Compressor Short Cycle Protection
- Separate O & B Terminals
- Low Battery Indication
- ESD Guard Electronic Circuitry
- Front Access Reset Button
- Fahrenheit - Celsius Switch
- Gas / Electric Fan Switch
- English / Spanish Packaging and Instruction Card with FREE Contractor Branding
Warranty: 5 Year
SPECIFICATIONS
| Dimensions: | 3.62” x 4.72” x 1.38” | ||
| Electric Rating: | 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 3 amp total maximum load (all terminals) | ||
| AC Power: | 18-30 Volt AC | ||
| DC Power: | 3.0 Volts DC (2 “AA” Alkaline batteries included) | ||
| Compatibility: | Single stage gas, oil or electric systems Single stage heat pump systems 250mv – 750mv millivolt heating systems | ||
| Control Range: | 45° to 90° F (7° to 32° C) | ||
| Display Range: | 40° to 99° F (5° to 37° C) | ||
| Accuracy: | +/- 1° F (+/- .5° C) | ||
| Temperature Differential: | 5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) | ||
| Storage Temperature: | 14° to 140° F (-10° to 60° C) | ||
| Operating Humidity: | 5% to 95% Relative Humidity | ||

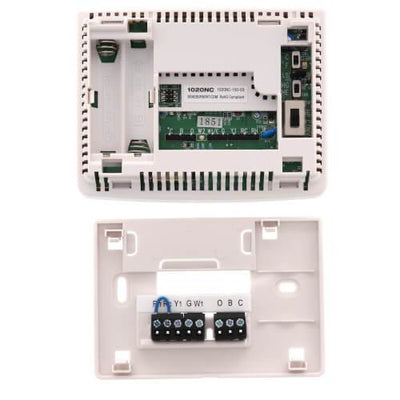

| Terminations: | Rc, Rh, B, O, Y1, W1, G, C |
