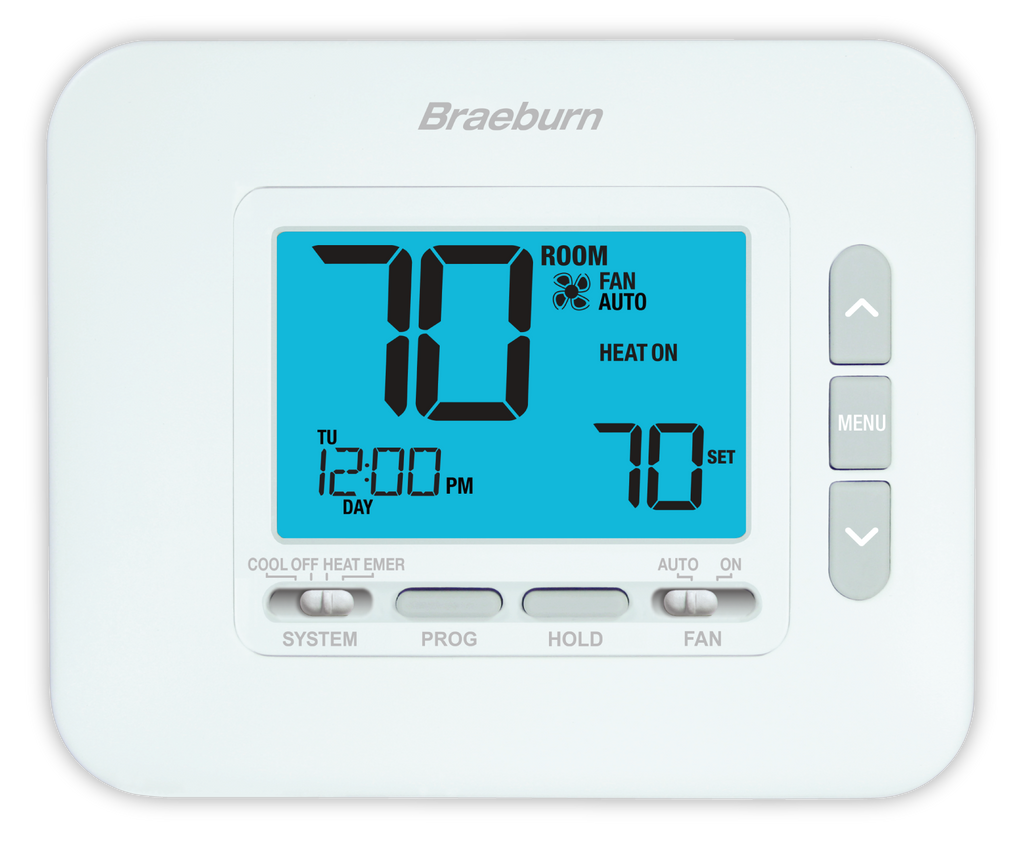

Braeburn 2230 Universal Programmable Thermostat, 2H/1C
The Braeburn 2230 is a universal programmable thermostat for conventional heating and cooling systems and heat pumps with up to two heat stages and one cool stage. Its bright blue backlit 4.4-square-inch display supports 7-day and 5-2-day schedules, as well as non-programmable operation.
The thermostat can run on 24V AC power or two AA batteries. It offers SmartLimit temperature limits, SpeedSet programming, adaptive recovery, an installer lock and filter check monitoring. Supported applications include low-voltage heating and cooling equipment, millivolt heating and two-wire hydronic zone systems.
$59.00 USD
SKU:
BR2230
ID:
2230
Categories:
PRODUCT INFO
Features
- 7 Day, 5-2 Day or Non-Programmable
- Large 4.4 Sq. In. Display
- Bright Blue Backlight
- SmartLimit® Temperature Limits
- SpeedSet™ Programming Mode
- Hardwire or Battery Powered
- Installer Lock Mode
- Filter Check Monitor
- Adaptive Recovery Mode (ARM™)
- Adjustable Temperature Differential
- Optional Celsius Display
- Separate O and B Terminals
- Compatible with 2-Wire Hydronic Zone Systems
- Heat Pump Check Terminal
- 5-Year Limited Warranty
SPECIFICATIONS
| Model | 2230 |
| Staging | 2 Heat / 1 Cool |
| Compatibility | Conventional and heat pump systems; single-stage heat pumps with auxiliary heat; 250–750 mV heating systems; 2-wire hydronic zone systems |
| Dimensions | 4.25 in. H × 5.12 in. W × 1 in. D |
| Electrical Rating | 24 VAC; 1 amp maximum load per terminal; 4 amp maximum total load |
| AC Power | 18–30 VAC |
| DC Power | 3.0 VDC (2 AA alkaline batteries) |
| Control Range | 45°–90°F (7°–32°C) |
| Temperature Accuracy | ±1°F (±0.5°C) |
| Operating Humidity | 5%–95% RH |
| Terminations | Rc, Rh, W1/E, W2, Y1, G, O, B, L, C |
| Programming | 7 Day, 5-2 Day, or Non-Programmable |
| Power | Battery or hardwire |
| Warranty | 5 years |
