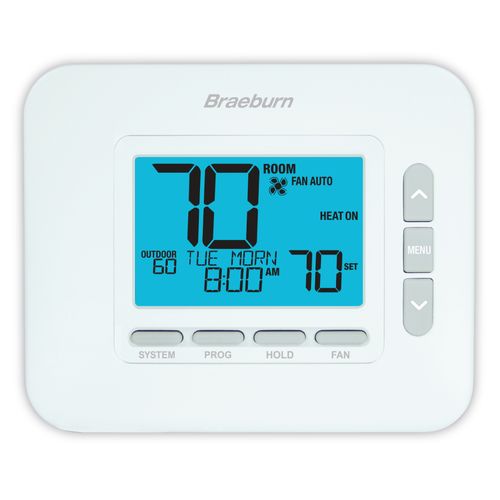

Braeburn 2232 Universal Programmable Thermostat with Auto Changeover
The Braeburn 2232 is a universal programmable thermostat with automatic or manual heat/cool changeover. It supports heat pump systems with up to three heating and two cooling stages and conventional systems with up to two heating and two cooling stages. It is compatible with low-voltage gas, oil and electric systems, as well as supported hydronic and millivolt heating applications.
The thermostat offers 7-day and 5-2-day schedules or non-programmable operation on a 4.4 sq. in. blue-backlit display. Features include SpeedSet programming, adaptive recovery, SmartLimit temperature limits, multi-level keypad lockout and circulating fan mode. It operates on 24V AC or two AA alkaline batteries and supports optional indoor or outdoor remote sensors (sold separately).
$71.00 USD
SKU:
BR2232
ID:
2232
Categories:
PRODUCT INFO
Features
- 7 Day, 5-2 Day or Non-Programmable
- Large 4.4 Sq. In. Display
- Bright Blue Backlight
- Auto or Manual Changeover
- SmartLimit® Temperature Limits
- Indoor or Outdoor Remote Sensor Support (optional sensors)
- SpeedSet™ Programming Mode
- Hardwire or Battery Powered
- Multi-Level Keypad Lockout
- Circulating Fan Mode
- Adaptive Recovery Mode (ARM™)
- Temporary Override Limits
- Compatible with 2 or 3 Wire Hydronic Zone Systems
- 5-Year Limited Warranty
SPECIFICATIONS
| Model | 2232 |
| Staging | Heat pump: up to 3 heat / 2 cool; conventional: up to 2 heat / 2 cool |
| Compatibility | Conventional and heat pump systems; low-voltage single or multistage gas, oil, electric, or hydronic systems; heat pumps with auxiliary heat; 250–750 mV heating systems; 2 or 3 wire hydronic zone systems |
| Dimensions | 4.25 in. H × 5.12 in. W × 1 in. D |
| Electrical Rating | 24 VAC; 1 amp maximum load per terminal; 4 amp maximum total load |
| AC Power | 18–30 VAC |
| DC Power | 3.0 VDC (2 AA alkaline batteries) |
| Control Range | 45°–90°F (7°–32°C) |
| Temperature Accuracy | ±1°F (±0.5°C) |
| Operating Humidity | 5%–95% RH |
| Terminations | Rc, Rh, W1/E, W2/AUX, Y1, Y2, G, O/B/V3, L, C, S1, S2 |
| Programming | 7 Day, 5-2 Day, or Non-Programmable |
| Auto Changeover | Yes |
| Remote Sensors | Indoor / Outdoor |
| Warranty | 5 years |
