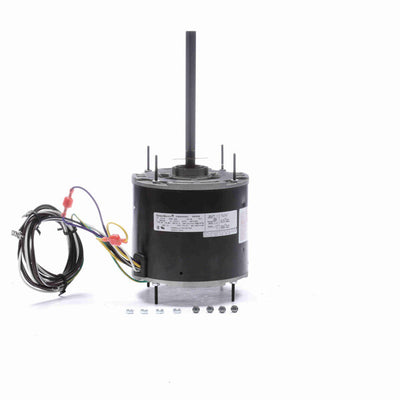

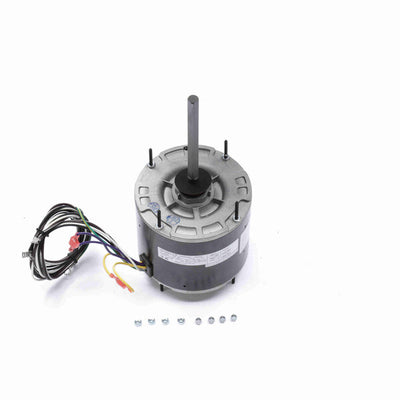

Century Condenser Fan ECM Motor, 825 RPM, 1/3-1/8 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • EconoMaster - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band

$127.00 USD

Title
Buy Now
SKU:
EM3459
ID:
HM104-1S9-0016

SPECIFICATIONS

Nameplate Specifications
UPC786674060365
Output HP1/3-1/8 Hp
Frequency60 Hz
Current1.8-2.0 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed825 rpm
Phase1
Insulation ClassB
EnclosureTotally Enclosed Air Over
Ambient Temperature60 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles8
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length4.25 in
Shaft Extension6.7 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.45 in
Shaft Diameter0.500 in
