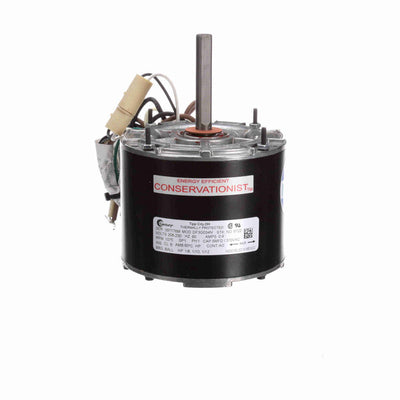

Century Condenser Fan Motor, 1075 RPM, 1/8-1/10-1/12 HP, 208-230 V, 42 Frame, Totally Enclosed Air Over
Century 9722 MultiFit condenser fan motor is a 42-frame multi-horsepower PSC motor for 208-230V condenser fan applications.
Product highlights
- 1/8, 1/10, or 1/12 HP
- 1075 RPM
- 208-230V
- 42 frame / 5 in diameter
- Permanent split capacitor motor
- Totally enclosed air-over construction
- Thermally protected
- Ball bearing
- 1/2 in shaft with flat
- 36 in leads
Ordering details
- Brand: Century
- Model / SKU: 9722
- Product type: Condenser Fan Motor
Fit note: Match horsepower, voltage, RPM, frame, shaft, mounting, rotation, capacitor, and equipment requirements before replacement.
$194.25 USD
PRODUCT INFO
Features
Multiple mounting configurations with removable studs providing 3 bolt circles. 60° max ambient. Includes water resistant rubber grommets for lead openings. Reversible rotation. 36" leads. Double sealed ball bearings
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674009838 |
| Output HP | 1/8, 1/10, 1/12 Hp |
| Frequency | 60 Hz |
| Current | 0.9 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Ball |
| Frame Length | 5.17 in |
| Shaft Extension | 3.0 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 7.50 in |
| Shaft Diameter | 0.500 in |
