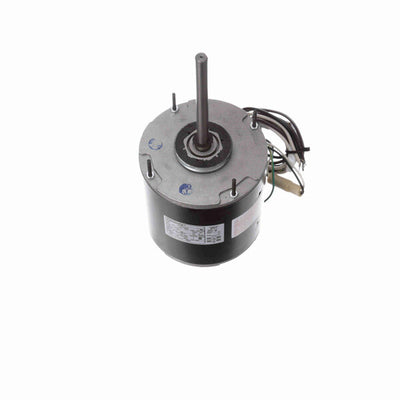

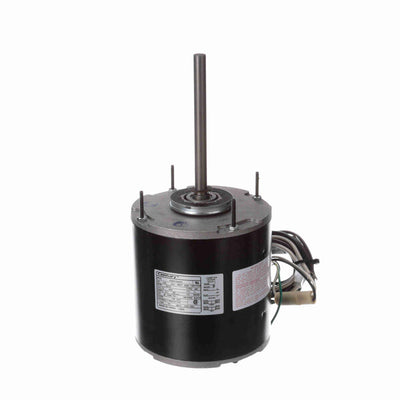

Century Condenser Fan Motor, 1075 RPM, 3/4 HP, 460 V, 48 Frame, Semi Enclosed

Availability:
Out-Stock
  • Condenser Fan - Heat Pump - Refrigeration Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Semi-Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 23" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting

$372.00 USD

Sold Out

SKU:
158A
ID:
HM101-1S9-0018

PRODUCT INFO

Applications
Horizontal or vertical shaft up applications

Features
Automatic thermal protection Short body design Electrically reversible

SPECIFICATIONS

Nameplate Specifications
UPC786674009944
Output HP3/4 Hp
Frequency50 Hz
Current2.1 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage460  V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureSemi Enclosed
Ambient Temperature60 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Ring/Extended Studs
Opp Drive End BearingBall
Shaft TypeKeyed
Frame Length5.00 in
Shaft Extension6.0 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.10 in
Shaft Diameter0.500 in
