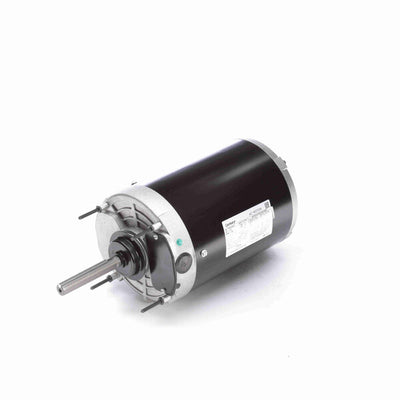

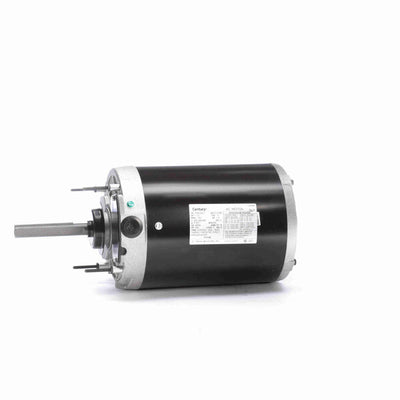

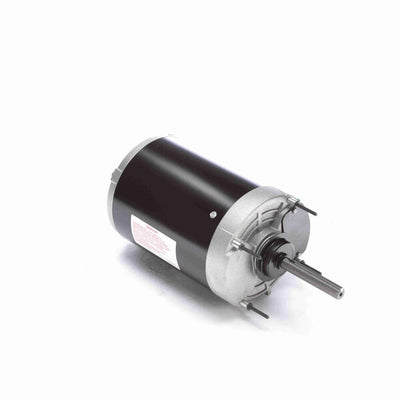

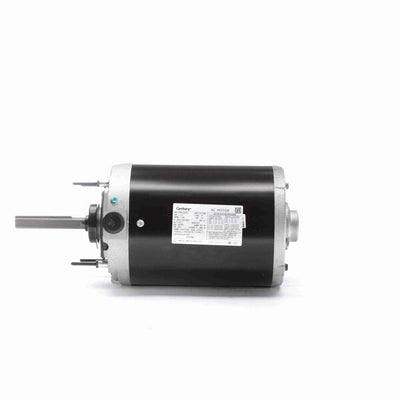

Century Condenser Fan Motor, 1140 RPM, 1-1/2 HP, 200-230/460 V, 56Y Frame, Totally Enclosed Air Over
- Double sealed ball bearings
- Automatic reset thermal protector
- Quick-connect design
- Reversible
- 3 Phase
$943.95 USD
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674021731 |
| Output HP | 1-1/2 Hp |
| Frequency | 60 Hz |
| Current | 5.4/2.7 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 56Y |
| Thermal Protection | Automatic |
| UL | No |
| Voltage | 200-230/460 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | B |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Polyphase |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Keyed |
| Frame Length | 7.44 in |
| Shaft Extension | 4.25 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 14.84 in |
| Shaft Diameter | 0.625 in |
