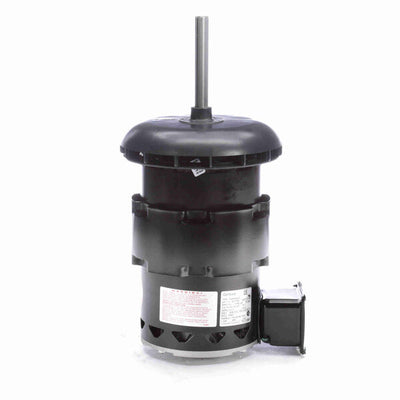

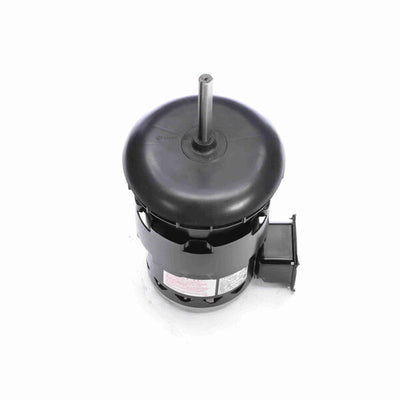

Century Condenser Fan Motor, 1120 RPM, 1-1/2 HP, 200-230/460 V, 48 Frame, Open Air Over
- HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
- 5.6" Diameter - 48 Frame
- Polyphase
- Thermally Protected
- Open Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 5/8" Diameter Shaft with Flat and Keyway
- Conduit Box
- Belly Band, Vertical Shaft Up
- 3 Phase
$943.95 USD
PRODUCT INFO
Features
Patented canopy design. Fan blades move cooling air through the motor for extra performance and long life. Electrically reversible. 70°C ambient. Heavy-duty ball bearings. All 5/8" diameter shafts have flat and key
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674020444 |
| Output HP | 1-1/2 Hp |
| Frequency | 60 Hz |
| Current | 5.8/2.9 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 200-230/460 V |
| Speed | 1120 rpm |
| Phase | 3 |
| Insulation Class | F |
| Enclosure | Open Air Over |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Three Phase |
| Poles | 6 |
| Mounting | Round Belly Band |
| Opp Drive End Bearing | Ball |
| Shaft Type | Keyed |
| Frame Length | 9.00 in |
| Shaft Extension | 4.07 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 15.44 in |
| Shaft Diameter | 0.625 in |
