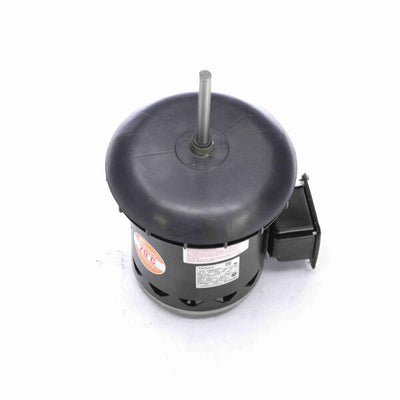

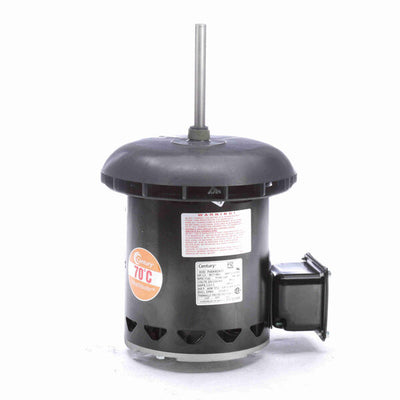

Century Condenser Fan Motor, 1140 RPM, 1/2 HP, 200-230/460 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
  • 5.6" Diameter - 48 Frame
  • Polyphase
  • Thermally Protected
  • Open Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • Conduit Box
  • Belly Band, Vertical Shaft Up
  • 3 phase

$364.85 USD

Title
Buy Now
SKU:
FC3056F
ID:
HM101-0021

PRODUCT INFO

Features
Patented canopy design, fan blades move cooling air through the motor for extra performance and long life Off-winding protectors protect all three legs of circuit Heavy-duty ball bearings 70°C ambient All 5/8" diameter shafts have flat and key

SPECIFICATIONS

Nameplate Specifications
UPC786674020406
Output HP1/2 Hp
Frequency60 Hz
Current3.0/1.5 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage200-230/460 V
Speed1140 rpm
Phase3
Insulation ClassF
EnclosureOpen Air Over
Ambient Temperature70 °C
CSAY
Technical Specifications

Electrical TypeThree Phase
Poles6
MountingRound Belly Band
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length6.38 in
Shaft Extension3.85 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.68 in
Shaft Diameter0.500 in
