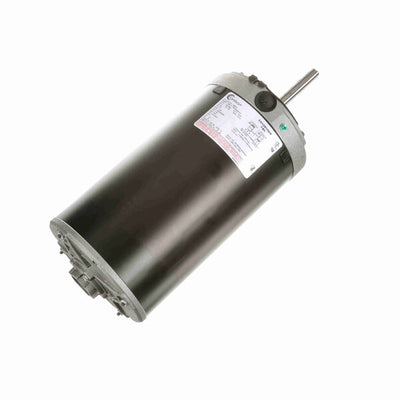

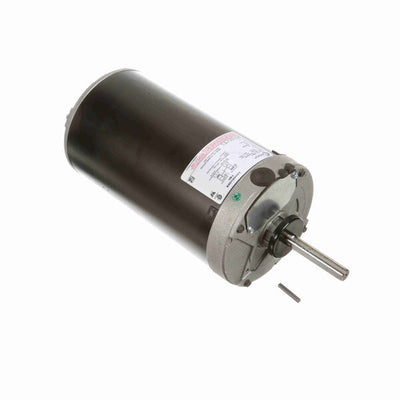

Century Condenser Fan Motor, 1140 RPM, 2 HP, 208-230/460 V, 56Y Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design
  • Reversible
  • 3 Phase
  • HM101-0091 replaces the following brands and item numbers: Used on many Carrier, York and McQuay rooftop units

$498.00 USD

Title
Buy Now
SKU:
H698V1
ID:
HM101-0091

PRODUCT INFO

Applications
Used on many Carrier, York and McQuay rooftop units

Features
Automatic thermal protection. Class B insulation. 70°C ambient. Double sealed ball bearings. Shaft with both keyway and flat. Rotation: reversible



SPECIFICATIONS

Nameplate Specifications
UPC786674074928
Output HP2.0 Hp
Frequency60 Hz
Current6.3-6.2/3.1 A
Service Factor1
DutyContinuous
Frame56Y
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230/460 V
Speed1140 rpm
Phase3
Insulation ClassB
EnclosureTotally Enclosed Air Over
Ambient Temperature70 °C
CSAY


Technical Specifications

Electrical TypeThree Phase
Poles6
MountingRound
Opp Drive End BearingBall
Shaft TypeKeyed
Frame Length10.25 in
Shaft Extension3.44 in
RotationReversible
Frame MaterialRolled Steel
Overall Length16.70 in
Shaft Diameter0.625 in
