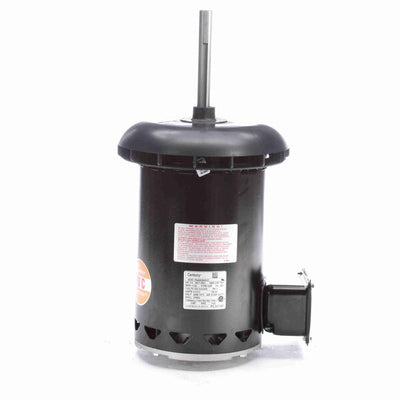

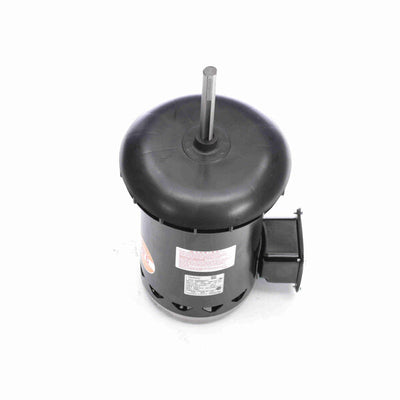

Century Condenser Fan Motor, 1140 RPM, 3/4 HP, 200-230/460 V, 48 Frame, Open Air Over

Availability:
Out-Stock
  • HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
  • 5.6" Diameter - 48 Frame
  • Polyphase
  • Thermally Protected
  • Open Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 5/8" Diameter Shaft with Flat and Keyway
  • Conduit Box
  • Belly Band, Vertical Shaft Up
  • 3 phase

$412.59 USD

Sold Out

SKU:
FC3076F
ID:
HM101-0019

PRODUCT INFO

Features
Patented canopy design, fan blades move cooling air through the motor for extra performance and long life Off-winding protectors protect all three legs of circuit Heavy-duty ball bearings 70°C ambient All 5/8" diameter shafts have flat and key

SPECIFICATIONS

Nameplate Specifications
UPC786674020413
Output HP3/4 Hp
Frequency60 Hz
Current4.0/2.0 A
Service Factor1
DutyAir Over
Frame48Y
Thermal ProtectionAutomatic
ULRecognized
Voltage200-230/460 V
Speed1140 rpm
Phase3
Insulation ClassF
EnclosureOpen Enclosed
Ambient Temperature70 °C
CSAY
Technical Specifications

Electrical TypeThree Phase
Poles6
MountingRound Belly Band
Opp Drive End BearingBall
Shaft TypeKeyed
Frame Length8.50 in
Shaft Extension4.07 in
RotationReversible
Frame MaterialRolled Steel
Overall Length14.99 in
Shaft Diameter0.625 in
