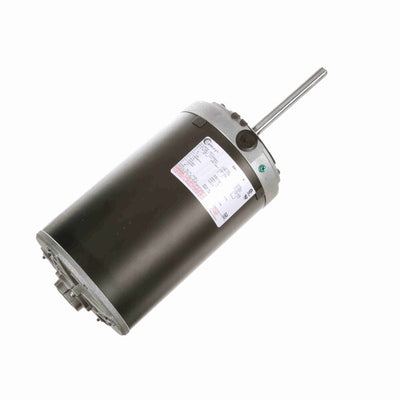

Century Condenser Fan Motor, 1140 RPM, 1-1/2 HP, 200-230/460 V, 56Y Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design
  • Reversible
  • 3 phase
  • Used on many Carrier, York and McQuay rooftop units

$600.38 USD

Title
Buy Now
SKU:
H697V1
ID:
HM101-0013

PRODUCT INFO

Features
Automatic thermal protection Class B insulation 70°C ambient Double sealed ball bearings Shaft with both keyway and flat Rotation: reversible

SPECIFICATIONS

Nameplate Specifications
UPC786674074911
Output HP1-1/2 Hp
Frequency60 Hz
Current5.4-5.6/2.8 A
Service Factor1.15
DutyContinuous
Frame56Y
Thermal ProtectionThermally Protected
ULRecognized
Voltage200-230/460 V
Speed1140 rpm
Phase3
Insulation ClassB
EnclosureTotally Enclosed Air Ove
Ambient Temperature70 °C
CSAY
Technical Specifications

Electrical TypeThree Phase
Poles6
MountingRound
Opp Drive End BearingBall
Shaft TypeKeyed
Frame Length9.25 in
Shaft Extension6.19 in
RotationReversible
Frame MaterialRolled Steel
Overall Length18.26 in
Shaft Diameter0.625 in
